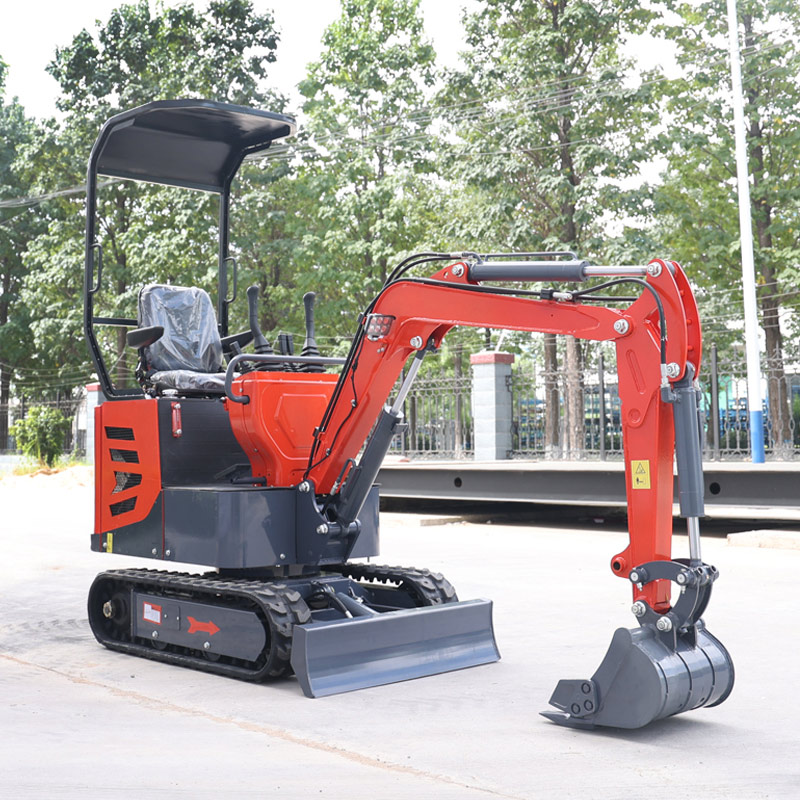

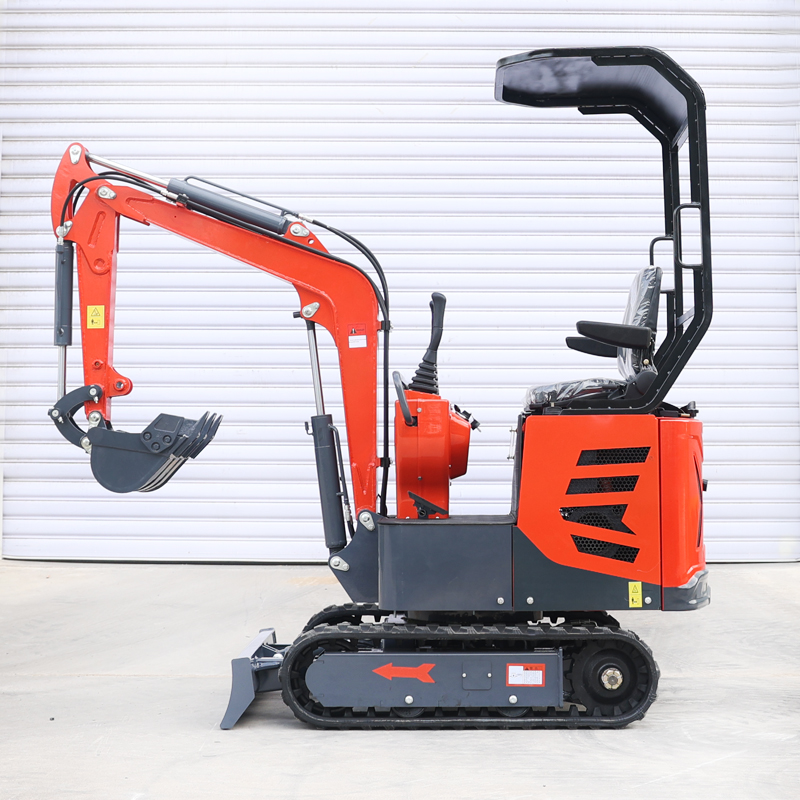

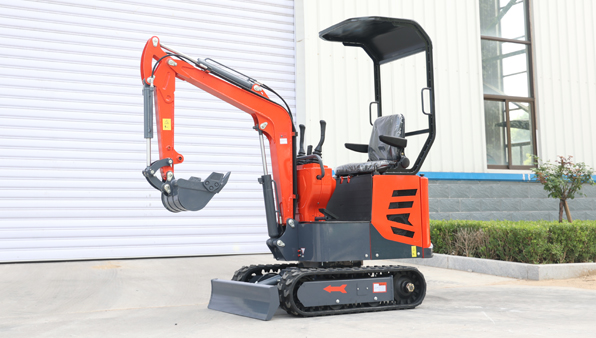

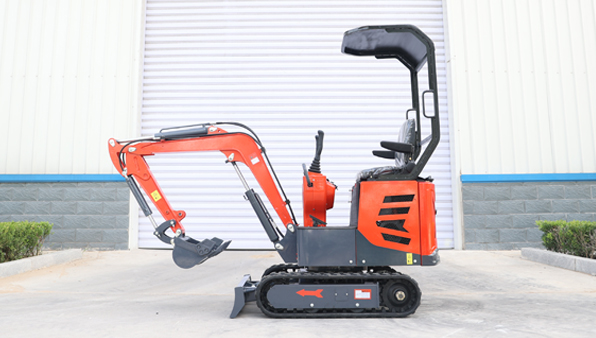

Excavators have already been one of the most popular construction machine in the application of farm,family,construction project,energy and mining working.
Bucket Capacity : 0.022m³
Power:10HP
Operating Weight:1000KG

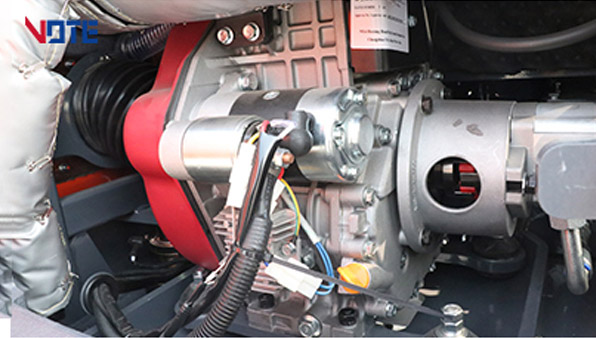

The excellent reliability and easy maintenance of kubota engines give customers the peace of mind when purchasing the vtw series excavators. There are also a variety of engines to choose from.
Well-known big brand engines, reliable quality, our company has long-term cooperation!

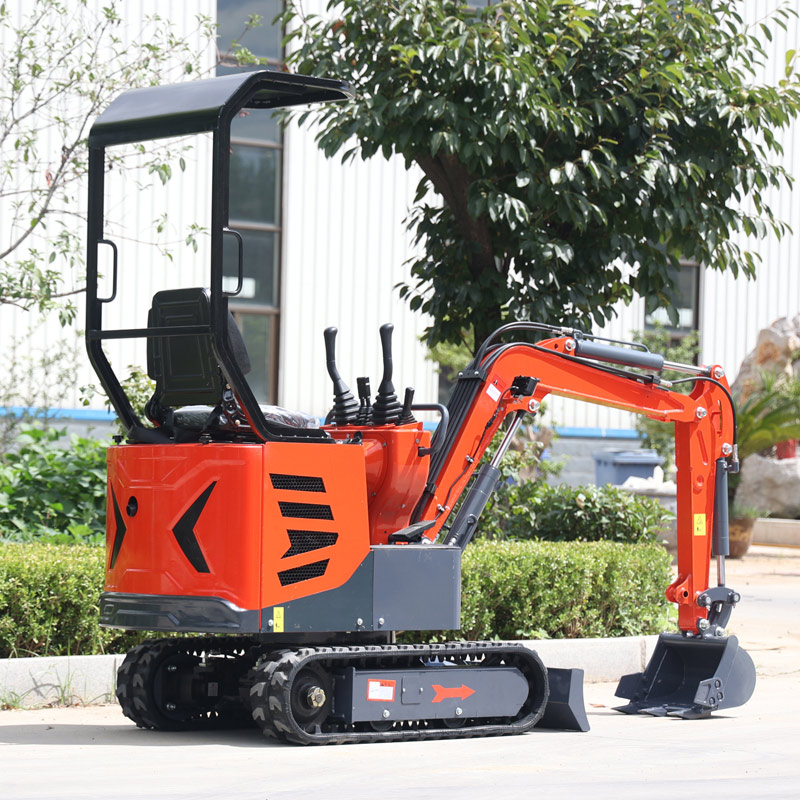

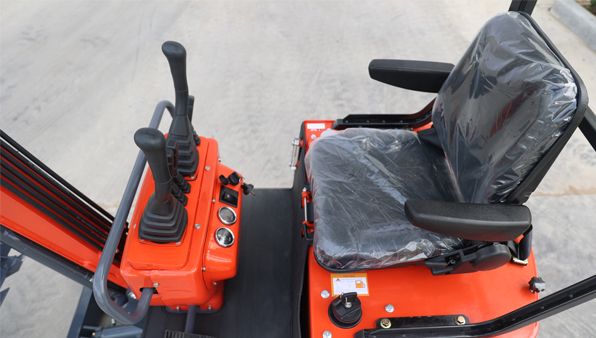

CAB
The unique design prevents cutting corners; the seat position and narrow digging arm provide first-class vision while maintaining maximum stability.More Accessories And Accessories Are Available!
When using the vtw series excavator, it is simple and easy to operate. Many customers reacted simply and easily during the first operation.

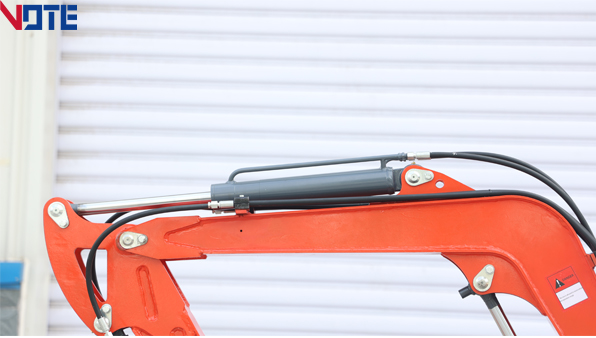

HYDRAULIC SYSTEM
At vote, we understand the importance of high-quality and high-efficiency hydraulic systems for building market-leading excavators. Therefore, the hydraulic components of the vtw series excavators only come from leading brands.
Kubota engines, pumps and hydraulic systems are perfectly synchronized to provide maximum power and faster working cycles, so that users can obtain higher productivity in the same time.

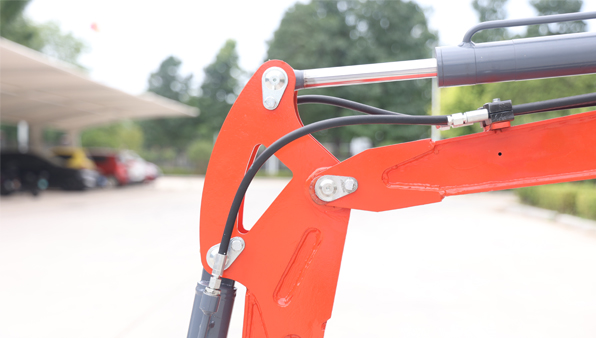

AXLE
High-quality hydraulic shafts are essential for making excellent excavators. Not only must they bear heavy loads, but they must also convert the high torque of hydrostatic power into digging force.
There is no doubt that one of the great successes of the vtw excavator is its excellent power. In order to achieve this goal, we designed and tested many times and fed back data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.

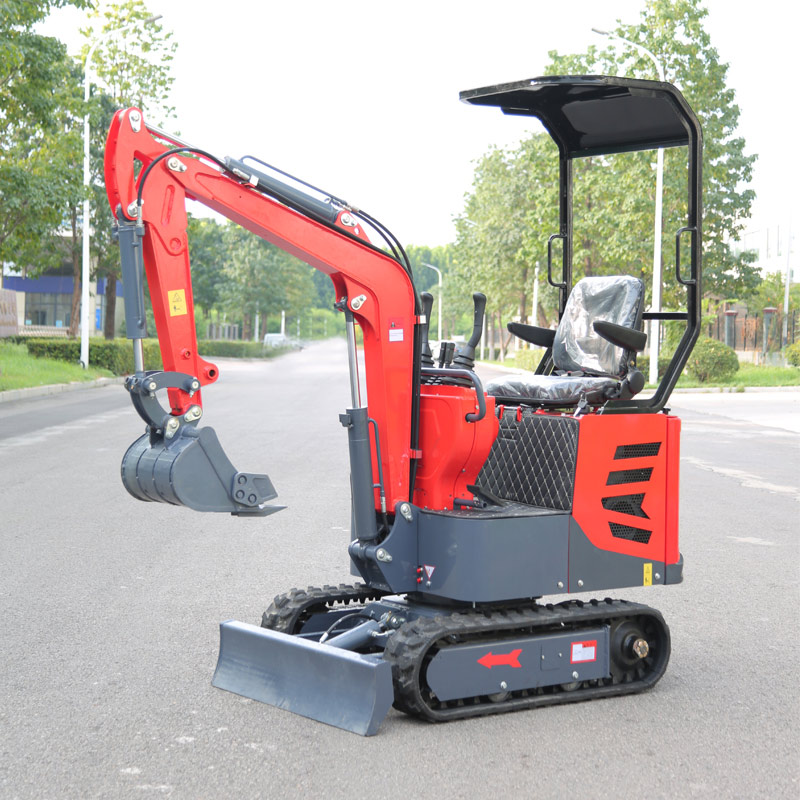

TRACK
The vtw series crawler excavator is equipped with a telescopic chassis system, in order to better deal with various harsh environments and better complete the work.
The Crawler Is Not Affected By Road Conditions. The Excavator Can Work In A Sloping Environment, But The Crawler Type Can Work On It. The Crawler Type Has Good Grip And Flexible Steering.
EASY MAINTENANCE SIMPLICITY
At Vote, We Believe That Simplification Is The Key To Maintenance, Repair And Replacement Of Parts. It Is This Simple Idea That Promotes The Design Of The Vtw Series Of Small Excavators.
There Are No Complicated Electronics Nor Advanced Software Systems. Any Construction Machinery Mechanic Can Quickly Identify Any Issues, Locate The Part Causing The Problem And Replace It. This Minimizes Downtime And Improved Customer Satisfaction.
Configuration
Technical parameters of the E10LC EXCAVATOR
Total measurement
Total length*width* height(during transportation)
2870*930*22813mm

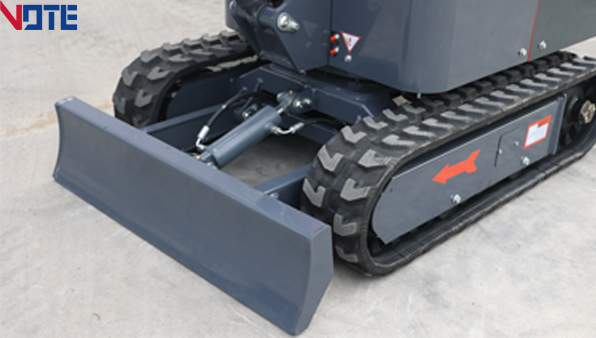

Dozer blade width (extend/retract)
937mm
Dozer blade height
210mm
Track center distance
746mm
Standard track shoe width
180mm
ground clearance
365mm
Standard bucket width (with/without tooth)
380/330mm
Track length
1200mm
Wheel spacing
920mm
Scope of work
Maximum digging height
2450mm
Maximum unloading height
1710mm
Maximum digging depth
1760mm
Maximum vertical boom digging depth
1690mm
Maximum digging distance
3030mm
Maximum digging distance on the ground
2940mm
Minimum radius of gyration of the front section
1490mm
Maximum push height
100mm
Maximum push depth
230mm
Performance parameter
Operating Weight
1000kg
Bucket capacity
0.022m³
Engine model
KOOP 192F/B&S
Displacement
1.5L/H
Rated power
10hp
Walking speed (high/low)
1.2km/h
Swing speed
9r/min
Gradeability
30°
Ground pressure
16Mpa
Bucket digging force
6.5kN
Fuel tank volume
18L
ENGINE
The excellent reliability and easy maintenance of kubota engines give customers the peace of mind when purchasing the vtw series excavators. There are also a variety of engines to choose from.
Well-known big brand engines, reliable quality, our company has long-term cooperation!
CAB
The unique design prevents cutting corners; the seat position and narrow digging arm provide first-class vision while maintaining maximum stability.More Accessories And Accessories Are Available!
When using the vtw series excavator, it is simple and easy to operate. Many customers reacted simply and easily during the first operation.
HYDRAULIC SYSTEM
At vote, we understand the importance of high-quality and high-efficiency hydraulic systems for building market-leading excavators. Therefore, the hydraulic components of the vtw series excavators only come from leading brands.
Kubota engines, pumps and hydraulic systems are perfectly synchronized to provide maximum power and faster working cycles, so that users can obtain higher productivity in the same time.
AXLE
High-quality hydraulic shafts are essential for making excellent excavators. Not only must they bear heavy loads, but they must also convert the high torque of hydrostatic power into digging force.
There is no doubt that one of the great successes of the vtw excavator is its excellent power. In order to achieve this goal, we designed and tested many times and fed back data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.
TRACK
The vtw series crawler excavator is equipped with a telescopic chassis system, in order to better deal with various harsh environments and better complete the work.
The Crawler Is Not Affected By Road Conditions. The Excavator Can Work In A Sloping Environment, But The Crawler Type Can Work On It. The Crawler Type Has Good Grip And Flexible Steering.
EASY MAINTENANCE SIMPLICITY
At Vote, We Believe That Simplification Is The Key To Maintenance, Repair And Replacement Of Parts. It Is This Simple Idea That Promotes The Design Of The Vtw Series Of Small Excavators.
There Are No Complicated Electronics Nor Advanced Software Systems. Any Construction Machinery Mechanic Can Quickly Identify Any Issues, Locate The Part Causing The Problem And Replace It. This Minimizes Downtime And Improved Customer Satisfaction.
Configuration
Technical parameters of the E10LC EXCAVATOR
