Excavators have already been one of the most popular construction machine in the application of farm,family,construction project,energy and mining working.
Bucket Capacity : 0.1m³
Power：49HP/26HP
Operating Weight：3500KG CABIN MODEL

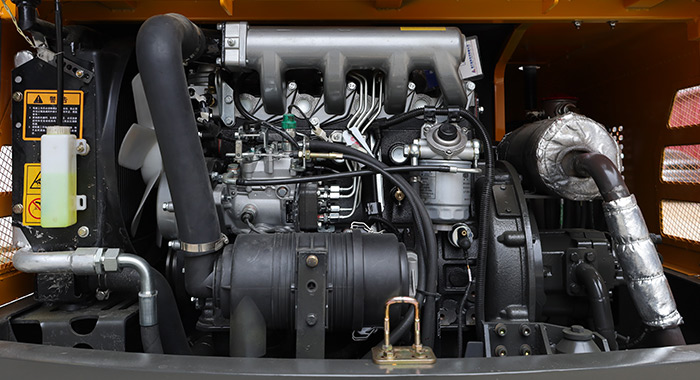

The excellent reliability and easy maintenance of Yanmar engines give customers the peace of mind when purchasing the vtw series excavators. There are also a variety of engines to choose from.
Well-known big brand engines, reliable quality, our company has long-term cooperation!
CAB

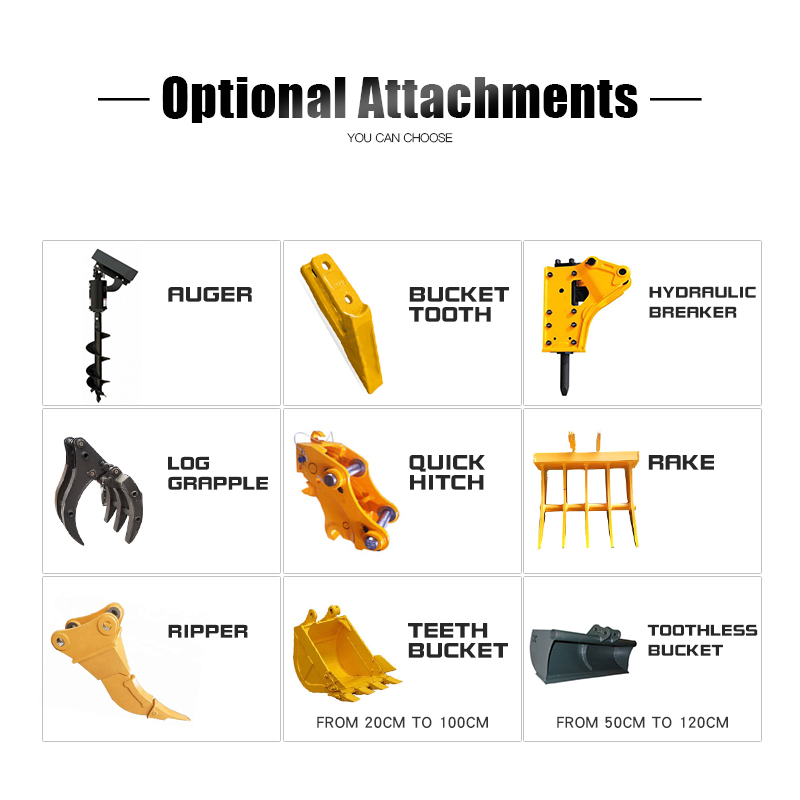

The unique design prevents cutting corners; the seat position and narrow digging arm provide first-class vision while maintaining maximum stability.More Accessories And Accessories Are Available!
When using the vtw series excavator, it is simple and easy to operate. Many customers reacted simply and easily during the first operation.
HYDRAULIC SYSTEM
At vote, we understand the importance of high-quality and high-efficiency hydraulic systems for building market-leading excavators. Therefore, the hydraulic components of the vtw series excavators only come from leading brands.
Yanmar engines, pumps and hydraulic systems are perfectly synchronized to provide maximum power and faster working cycles, so that users can obtain higher productivity in the same time.
AXLE
High-quality hydraulic shafts are essential for making excellent excavators. Not only must they bear heavy loads, but they must also convert the high torque of hydrostatic power into digging force.
There is no doubt that one of the great successes of the vtw excavator is its excellent power. In order to achieve this goal, we designed and tested many times and fed back data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.
TRACK
The vtw series crawler excavator is equipped with a telescopic chassis system, in order to better deal with various harsh environments and better complete the work.
The Crawler Is Not Affected By Road Conditions. The Excavator Can Work In A Sloping Environment, But The Crawler Type Can Work On It. The Crawler Type Has Good Grip And Flexible Steering.
EASY MAINTENANCE SIMPLICITY
At Vote, We Believe That Simplification Is The Key To Maintenance, Repair And Replacement Of Parts. It Is This Simple Idea That Promotes The Design Of The Vtw Series Of Small Excavators.
There Are No Complicated Electronics Nor Advanced Software Systems. Any Construction Machinery Mechanic Can Quickly Identify Any Issues, Locate The Part Causing The Problem And Replace It. This Minimizes Downtime And Improved Customer Satisfaction.
Configuration
Technical parameters of the E35LC EXCAVATOR
Total measurement
Scope of work
Performance parameter
Total length (during transportation)
4180mm
Maximum digging height
3900mm
Operating Weight
3500KG
Overall width (during transportation/operation)
1500mm
Maximum unloading height
2600mm
Bucket Capacity
0.1m³
Total height (during transportation)
2200mm
Maximum digging depth
2500mm
engine model
Changchai 390, 24.5KW, National II
Dozer blade width (extend/retract)
1500mm
Maximum vertical boom digging depth
2350mm
Displacement
1.83L/H
Dozer blade height
210mm
Maximum digging distance
4040mm
Power
49HP/26HP
Track center distance
1800mm
Maximum digging distance
5486mm
Walking speed (high/low)
2.7km/h
Distance from the center of rotation to the tail of the track
1350mm
Minimum turning radius of front end
900mm
Swing speed
10r/min
Standard track shoe width
250mm
The minimum radius of gyration at the rear end
1300mm
Swing angle
360°
Minimum ground clearance
240mm
Maximum bulldozing height
410mm
Gradeability
30°
Standard bucket width (with/without side teeth)
570/500mm
Maximum bulldozing depth
400mm
Ground pressure
35Mpa
Track length
2300mm
Ground pressure
22KN
Wheel spacing
2050mm
Fuel tank volume
20L
ENGINE
The excellent reliability and easy maintenance of Yanmar engines give customers the peace of mind when purchasing the vtw series excavators. There are also a variety of engines to choose from.
Well-known big brand engines, reliable quality, our company has long-term cooperation!
CAB
The unique design prevents cutting corners; the seat position and narrow digging arm provide first-class vision while maintaining maximum stability.More Accessories And Accessories Are Available!
When using the vtw series excavator, it is simple and easy to operate. Many customers reacted simply and easily during the first operation.
HYDRAULIC SYSTEM
At vote, we understand the importance of high-quality and high-efficiency hydraulic systems for building market-leading excavators. Therefore, the hydraulic components of the vtw series excavators only come from leading brands.
Yanmar engines, pumps and hydraulic systems are perfectly synchronized to provide maximum power and faster working cycles, so that users can obtain higher productivity in the same time.
AXLE
High-quality hydraulic shafts are essential for making excellent excavators. Not only must they bear heavy loads, but they must also convert the high torque of hydrostatic power into digging force.
There is no doubt that one of the great successes of the vtw excavator is its excellent power. In order to achieve this goal, we designed and tested many times and fed back data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.
TRACK
The vtw series crawler excavator is equipped with a telescopic chassis system, in order to better deal with various harsh environments and better complete the work.
The Crawler Is Not Affected By Road Conditions. The Excavator Can Work In A Sloping Environment, But The Crawler Type Can Work On It. The Crawler Type Has Good Grip And Flexible Steering.
EASY MAINTENANCE SIMPLICITY
At Vote, We Believe That Simplification Is The Key To Maintenance, Repair And Replacement Of Parts. It Is This Simple Idea That Promotes The Design Of The Vtw Series Of Small Excavators.
There Are No Complicated Electronics Nor Advanced Software Systems. Any Construction Machinery Mechanic Can Quickly Identify Any Issues, Locate The Part Causing The Problem And Replace It. This Minimizes Downtime And Improved Customer Satisfaction.
Configuration
Technical parameters of the E35LC EXCAVATOR
Total measurement
Scope of work
Performance parameter
Total length (during transportation)
4180mm
Maximum digging height
3900mm
Operating Weight
3500KG
Overall width (during transportation/operation)
1500mm
Maximum unloading height
2600mm
Bucket Capacity
0.1m³
Total height (during transportation)
2200mm
Maximum digging depth
2500mm
engine model
Changchai 390, 24.5KW, National II
Dozer blade width (extend/retract)
1500mm
Maximum vertical boom digging depth
2350mm
Displacement
1.83L/H
Dozer blade height
210mm
Maximum digging distance
4040mm
Power
49HP/26HP
Track center distance
1800mm
Maximum digging distance
5486mm
Walking speed (high/low)
2.7km/h
Distance from the center of rotation to the tail of the track
SDLT is specialized in Wheel loaders, Excavator research and produce,we will be stronger and stronger in the future.“Achieve the customer's dream,and keep on creating the supreme value for customers” is our forever missions.
