Electric forklifts are known for their efficiency in a variety of settings. They are quieter and produce fewer emissions than their internal combustion engine counterparts, making them an ideal choice for indoor or enclosed spaces. They also require less maintenance, as they do not have the same number of moving parts as traditional forklifts. Pallet jacket power has a long battery life, allowing for longer periods of continuous use without the need for recharging. Whether they are new or used electric forklifts, they are a smart choice for warehouses and distribution centers that want to reduce their environmental impact and operating costs.
Rated Capacity：1000kg
Battery Weight：150kg
Wheel Base：1330mm

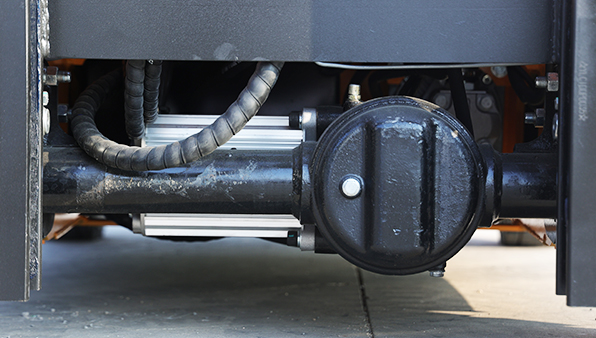

Our forklift axle is a small-tonnage forklift dedicated axle that is equipped with a matching system of the same brand as top line brands. The box and bridge are designed integrally.

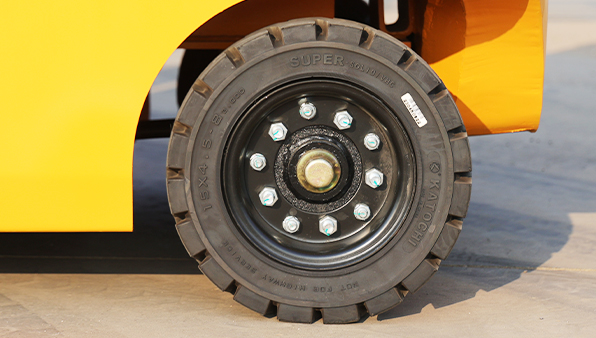

Tires
We use natural rubber tires, which are wear-resistant, quiet with strong anti-recoil ability, long service life, and safe and reli-able.

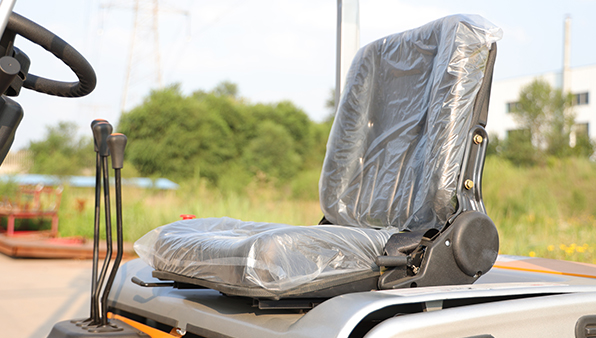

Comfort Configuration
The seat of the German brand Linde is comfortable and durable;the seat is newly added with human-machine induction, and when the seat is unoccupied, other operations are invalid, pre-venting accidental injury and greatly enhancing the safety of forklift driving.

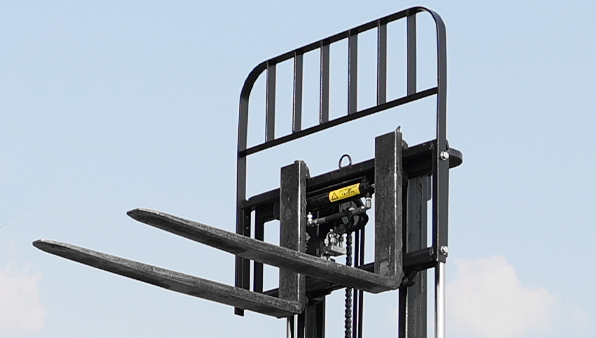

Shelf
The whole is welded with high-strength steel plates, and rein-forced steel plate skeletons are assembled at important stress-bearing parts, so that the load will not be deformed when the load is lifted, and it is firm, reliable, and safe.

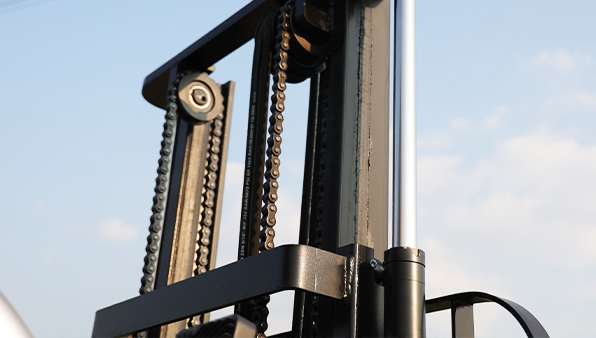

Mast
Our Mast adopts the best quality manganese steel profiles, which are welded with integral steel plates, thick and durable strong toughness, and high safety factor.
Configuration
Technical parameters of the CPDD-10 Electric forklift
Characteristics
Size
Model
CPDD-10
Front overhang
308mm
Driving mode
Seated
Tilt of the mast,front/rear
5/10°
Rated capacity
1000kg
Height,mast retraction
2017mm
Road center distance
500mm
Free lift height
/
Power mode
Lead-acid battery
Overall maximum lift height
3000mm
Wheelbase
1200mm
Height,mast extended
3957mm
Tyre
Overhead guard height
1847mm
Tyre type
Solid tire
Lateral Fork Adjustment(Outside of Forks)Max/Min
970/200mm
Front track
910mm
Fork size(L*W*T)
30*100*920mm
Rear track
865mm
Truck body length(fork excluded)
1795mm
Tyre(front)
15X4 1/2-8
Truck body width
1020mm
Tyre(rear)
15X4 1/2-8
Turning radius
1900mm
Performance
Groubd clearance under mast
77mm
Travel speed,laden/unladen
2024/10/11km/h
Ground clearance at center of wheelbase(laden)
100mm
Lifting speed,laden/unladen
220/230mm/s
Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)
3400mm
Lowering speed,laden/unladen
550mm/s
Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)
3650mm
Maximum negoniable gradient,laden/unladen
15/20%
Electrical configuration
Weight
Drive motor power-60 minutes
5(permanent magnet synchronization)kW
Service mass(with battery)
1570kg
Lift motor power-15 minutes
4.5(permanent magnet synchronization)kW
Battery voltage /nominal capacity
60V/100 V/Ah
Drive motor controlling mode
MOSFET/PMSM
Battery weight
180kg
Lifting motor controlling mode
MOSFET/PMSM
Axle
Our forklift axle is a small-tonnage forklift dedicated axle that is equipped with a matching system of the same brand as top line brands. The box and bridge are designed integrally.
Tires
We use natural rubber tires, which are wear-resistant, quiet with strong anti-recoil ability, long service life, and safe and reli-able.
Comfort Configuration
The seat of the German brand Linde is comfortable and durable;the seat is newly added with human-machine induction, and when the seat is unoccupied, other operations are invalid, pre-venting accidental injury and greatly enhancing the safety of forklift driving.
Shelf
The whole is welded with high-strength steel plates, and rein-forced steel plate skeletons are assembled at important stress-bearing parts, so that the load will not be deformed when the load is lifted, and it is firm, reliable, and safe.
Mast
Our Mast adopts the best quality manganese steel profiles, which are welded with integral steel plates, thick and durable strong toughness, and high safety factor.
Configuration
Technical parameters of the CPDD-10 Electric forklift
Characteristics
Size
Model
CPDD-10
Front overhang
308mm
Driving mode
Seated
Tilt of the mast,front/rear
5/10°
Rated capacity
1000kg
Height,mast retraction
2017mm
Road center distance
500mm
Free lift height
/
Power mode
Lead-acid battery
Overall maximum lift height
3000mm
Wheelbase
1200mm
Height,mast extended
3957mm
Tyre
Overhead guard height
1847mm
Tyre type
Solid tire
Lateral Fork Adjustment(Outside of Forks)Max/Min
970/200mm
Front track
910mm
Fork size(L*W*T)
30*100*920mm
Rear track
865mm
Truck body length(fork excluded)
1795mm
Tyre(front)
15X4 1/2-8
Truck body width
1020mm
Tyre(rear)
15X4 1/2-8
Turning radius
1900mm
Performance
Groubd clearance under mast
77mm
Travel speed,laden/unladen
2024/10/11km/h
Ground clearance at center of wheelbase(laden)
100mm
Lifting speed,laden/unladen
220/230mm/s
Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)
3400mm
Lowering speed,laden/unladen
550mm/s
Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)
