CPD-30 3TON Electric forklift

　放大1倍

Electric forklifts are known for their efficiency in a variety of settings. They are quieter and produce fewer emissions than their internal combustion engine counterparts, making them an ideal choice for indoor or enclosed spaces. They also require less maintenance, as they do not have the same number of moving parts as traditional forklifts. Pallet jacket power has a long battery life, allowing for longer periods of continuous use without the need for recharging. Whether they are new or used electric forklifts, they are a smart choice for warehouses and distribution centers that want to reduce their environmental impact and operating costs. Rated Capacity：3000kg Battery Weight：430kg Wheel Base：1850mm

 Request Quote Name Email Whatsapp number / Phone number Leave your message
 product manual
 A key to share

Selling point
Configuration
Customer case
Relevant
 Request Quote

Name

Email

Whatsapp number / Phone number

Leave your message

 Request price

Name

Email

Whatsapp number / Phone number

Leave your message
 Back to previous

CPD-30 3TON Electric forklift

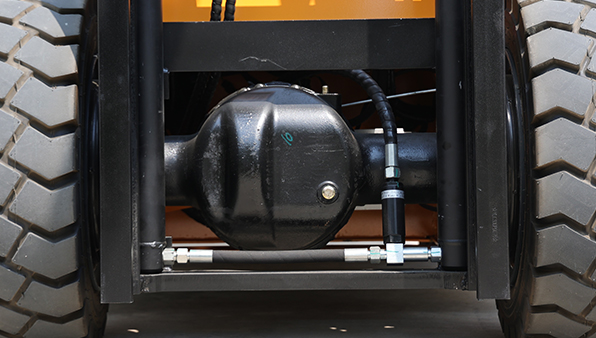

	Axle Our forklift axle is a small-tonnage forklift dedicated axle that is equipped with a matching system of the same brand as top line brands. The box and bridge are designed integrally.

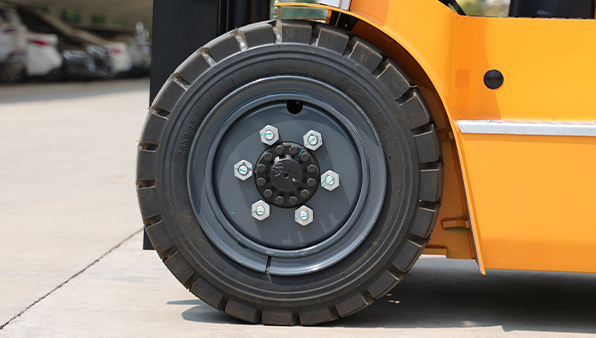

Tires We use natural rubber tires, which are wear-resistant, quiet with strong anti-recoil ability, long service life, and safe and reli-able.

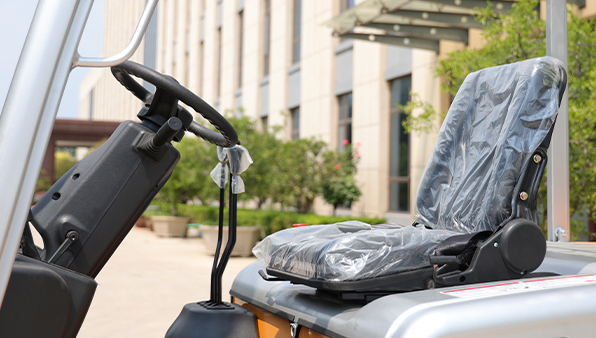

	Comfort Configuration The seat of the German brand Linde is comfortable and durable;the seat is newly added with human-machine induction, and when the seat is unoccupied, other operations are invalid, pre-venting accidental injury and greatly enhancing the safety of forklift driving.

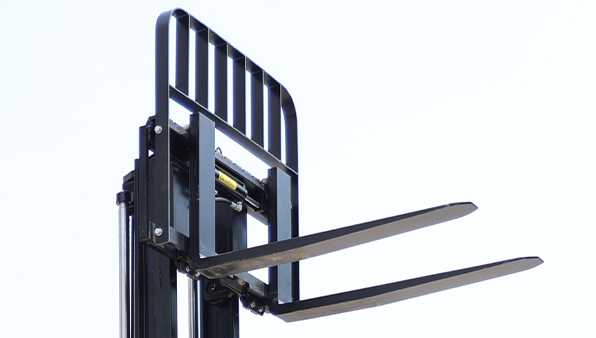

Shelf The whole is welded with high-strength steel plates, and rein-forced steel plate skeletons are assembled at important stress-bearing parts, so that the load will not be deformed when the load is lifted, and it is firm, reliable, and safe.

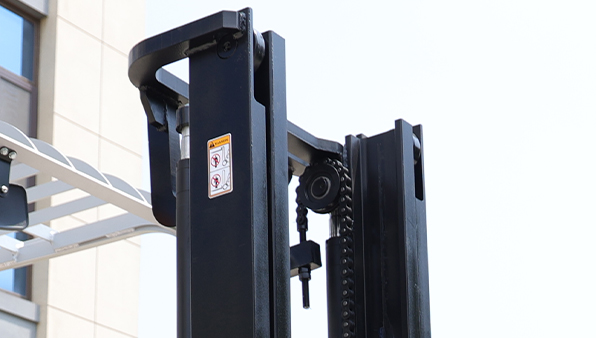

	Mast Our Mast adopts the best quality manganese steel profiles, which are welded with integral steel plates, thick and durable strong toughness, and high safety factor.

Characteristics		Size
Model	CPD-30	Front overhang	467mm
Driving mode	Seated	Tilt of the mast,front/rear	5/10°
Rated capacity	3000kg	Height,mast retraction	2057mm
Road center distance	500mm	Free lift height	120mm
Power mode	Lead-acid battery	Overall maximum lift height	3000mm
Wheelbase	1780mm	Height,mast extended	4200mm
Tyre		Overhead guard height	2200mm
Tyre type	Pneumatic tire	Lateral Fork Adjustment(Outside of Forks)Max/Min	1100/244mm
Front track	1002mm	Fork size(LWT)	451221070mm
Rear track	994mm	Truck body length(fork excluded)	2547mm
Tyre(front)	28*9-15	Truck body width	1225mm
Tyre(rear)	18*7-8	Turning radius	2310mm
Performance		Groubd clearance under mast	82mm
Travel speed,laden/unladen	10/10km/h	Ground clearance at center of wheelbase(laden)	145mm
Lifting speed,laden/unladen	200/300mm/s	Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)	4100mm
Lowering speed,laden/unladen	450mm/s	Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)	4300mm
Maximum negoniable gradient,laden/unladen	12/15%	Electrical configuration
Weight		Drive motor power-60 minutes	11 (communication asynchronous)kW
Service mass(with battery)	4300kg	Lift motor power-15 minutes	10 (communication asynchronous)kW
Battery voltage /nominal capacity	72V/260Ah	Drive motor controlling mode	MOSFET/AC
Battery weight	430kg	Lifting motor controlling mode	MOSFET/AC



	Axle Our forklift axle is a small-tonnage forklift dedicated axle that is equipped with a matching system of the same brand as top line brands. The box and bridge are designed integrally.
Tires We use natural rubber tires, which are wear-resistant, quiet with strong anti-recoil ability, long service life, and safe and reli-able.
	Comfort Configuration The seat of the German brand Linde is comfortable and durable;the seat is newly added with human-machine induction, and when the seat is unoccupied, other operations are invalid, pre-venting accidental injury and greatly enhancing the safety of forklift driving.
Shelf The whole is welded with high-strength steel plates, and rein-forced steel plate skeletons are assembled at important stress-bearing parts, so that the load will not be deformed when the load is lifted, and it is firm, reliable, and safe.
	Mast Our Mast adopts the best quality manganese steel profiles, which are welded with integral steel plates, thick and durable strong toughness, and high safety factor.

Characteristics		Size
Model	CPD-30	Front overhang	467mm
Driving mode	Seated	Tilt of the mast,front/rear	5/10°
Rated capacity	3000kg	Height,mast retraction	2057mm
Road center distance	500mm	Free lift height	120mm
Power mode	Lead-acid battery	Overall maximum lift height	3000mm
Wheelbase	1780mm	Height,mast extended	4200mm
Tyre		Overhead guard height	2200mm
Tyre type	Pneumatic tire	Lateral Fork Adjustment(Outside of Forks)Max/Min	1100/244mm
Front track	1002mm	Fork size(LWT)	451221070mm
Rear track	994mm	Truck body length(fork excluded)	2547mm
Tyre(front)	28*9-15	Truck body width	1225mm
Tyre(rear)	18*7-8	Turning radius	2310mm
Performance		Groubd clearance under mast	82mm
Travel speed,laden/unladen	10/10km/h	Ground clearance at center of wheelbase(laden)	145mm
Lifting speed,laden/unladen	200/300mm/s	Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)	4100mm
Lowering speed,laden/unladen	450mm/s	Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)	4300mm
Maximum negoniable gradient,laden/unladen	12/15%	Electrical configuration
Weight		Drive motor power-60 minutes	11 (communication asynchronous)kW
Service mass(with battery)	4300kg	Lift motor power-15 minutes	10 (communication asynchronous)kW
Battery voltage /nominal capacity	72V/260Ah	Drive motor controlling mode	MOSFET/AC
Battery weight	430kg	Lifting motor controlling mode	MOSFET/AC
