Rough Terrain Forklift

Home >PRODUCTS>Rough Terrain Forklift

   放大1

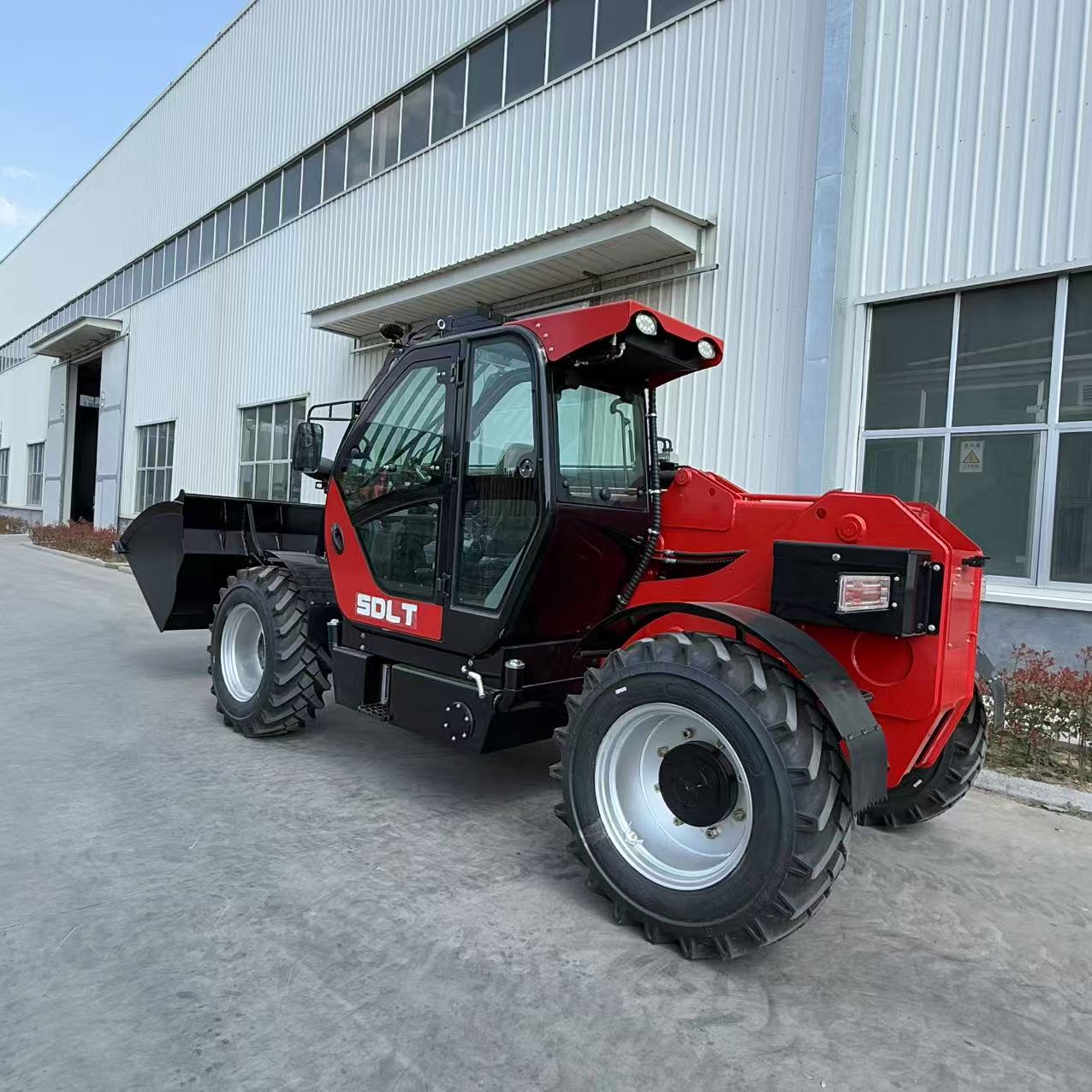

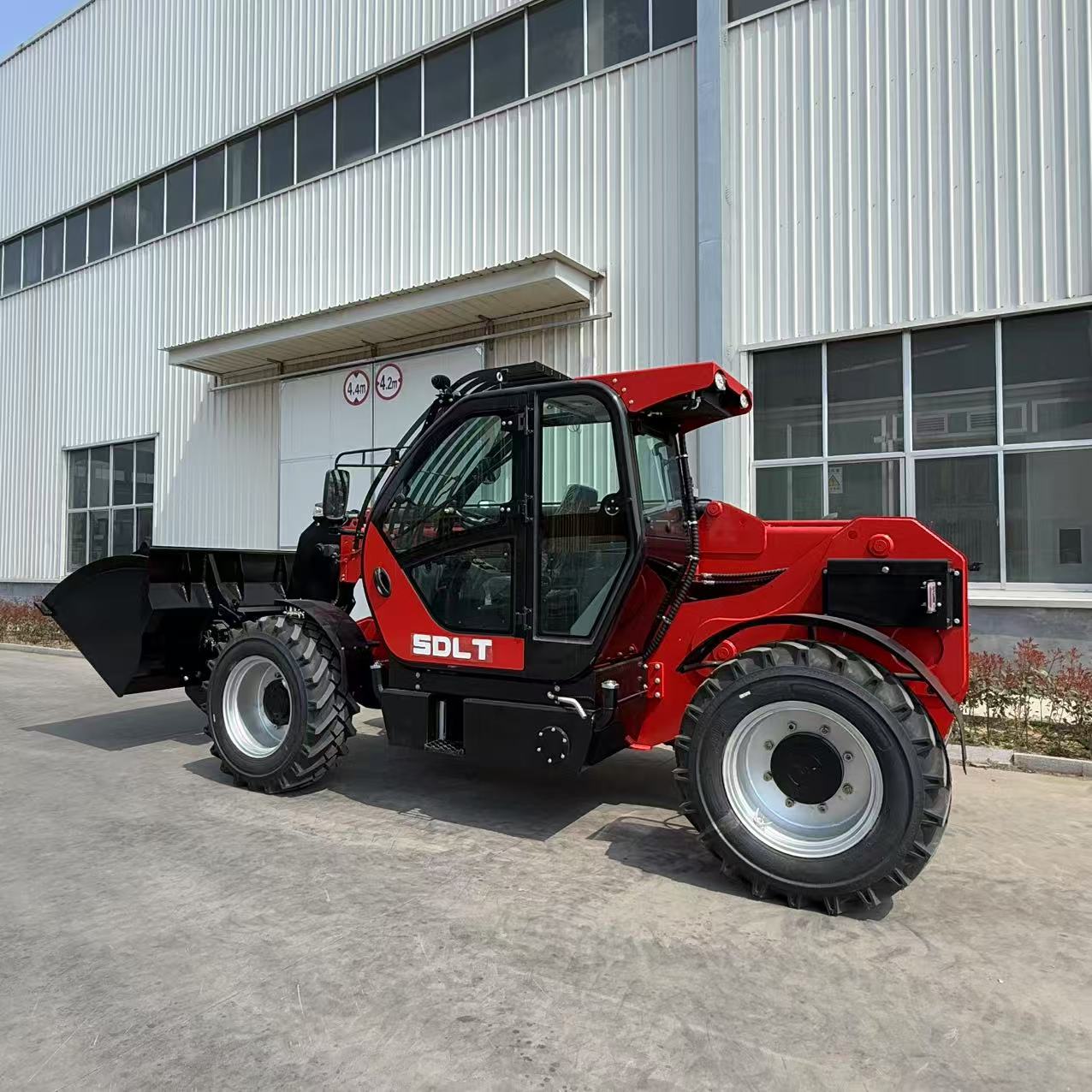

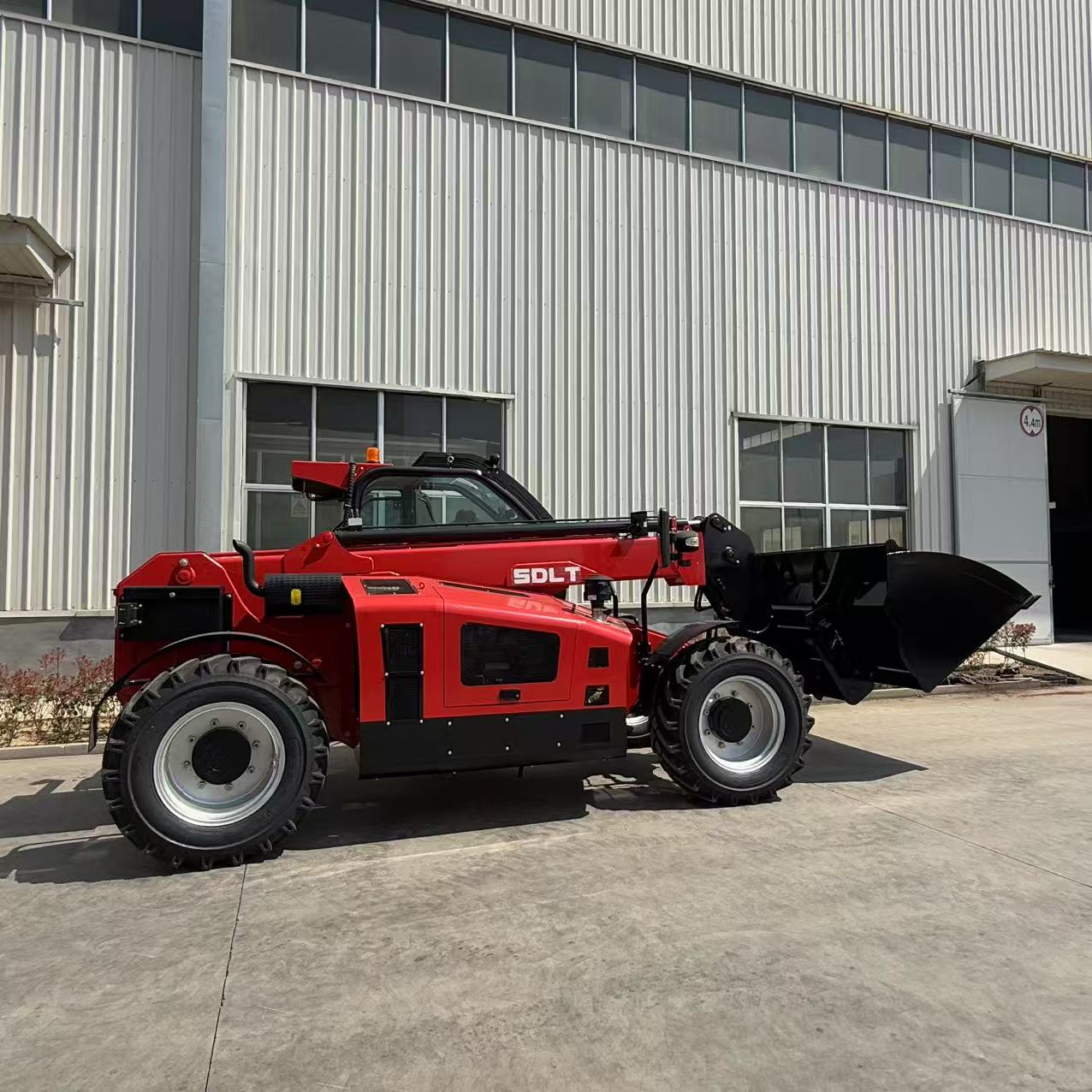

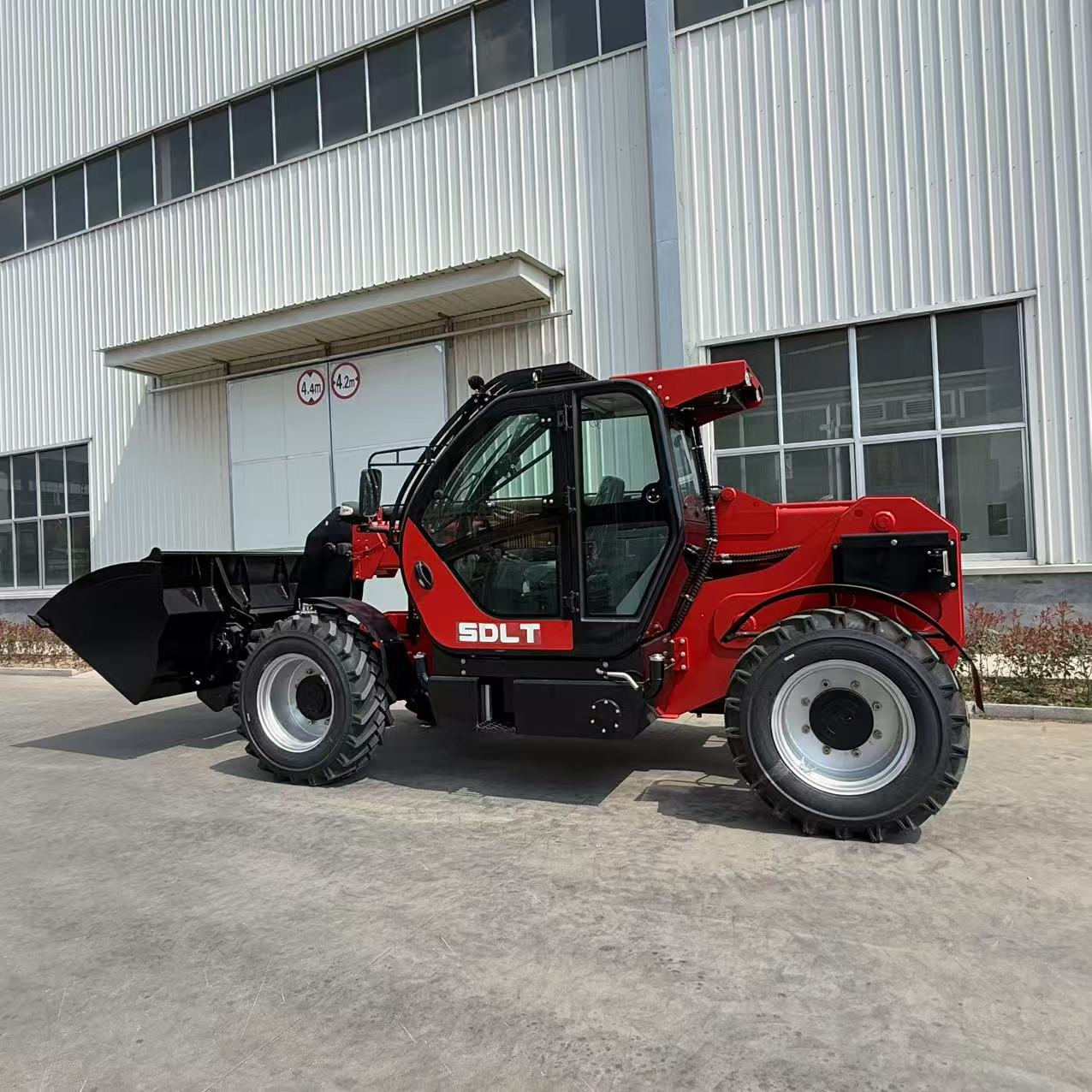

H735F HA735 H735 Telehandler forklift

Telescopic Forklift Advantages and Highlights:

* The comprehensive cab and the HIGH-END visual identity appearance design feature good fashion .
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions suitable for lifting and carrying in narrow ground.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations. The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
*Emergency stop control; Adopt the engine which is powerful and with low maintenance. with CE.ISO certificate


  • Selling point
  • Configuration
  • Customer case
  • Relevant
We Accept:
H735F HA735 H735 Telehandler forklift

Model

H730
H735
H840
H850
Rated Load
kg
3000
3500
4000
5000
Maximum Lifting Height
m
7
7
8
8
Maximum Front Reach
m
3.93
3.93
4.25
6.8
Overall Length (To Fork Carrier)
m
5.05
5.05
6.08
6.08
Overall Width
m
2.26
2.26
2.36
2.26
Overall Height
m
2.49
2.49
2.45
2.54
Wheelbase
m
2.8
2.8
3
3.3
Ground Clearance
m
0.36
0.36
0.41
4
Turning Radius
m
3.8
3.8
3.75
4
Weight
kg
7000
7000
/
11000
Tires

16/70-20
16/70-20
/
16/70-24
Fork Size(L×W×T)
mm
1200×125×45
1200×125×45
1200×125×50
1200×125×45
Lifting
s
7.2
7.2
15.5
7.2
Lowering
s
5.5
5.5
11.6
5.5
Extension
s
6.5
6.5
16.5
6.5
Retraction
s
5.4
5.4
11.9
5.4
