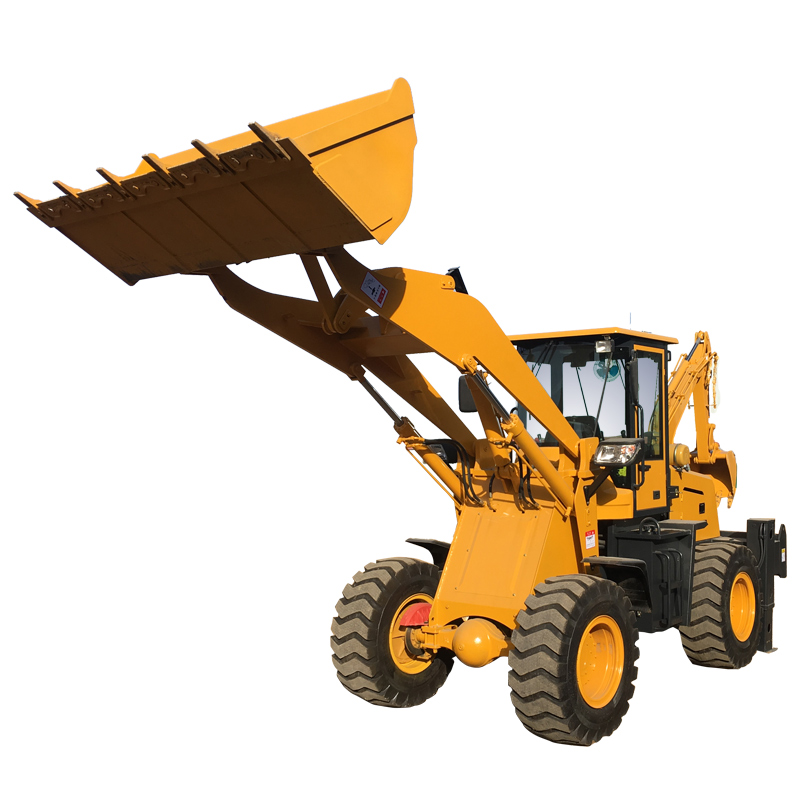

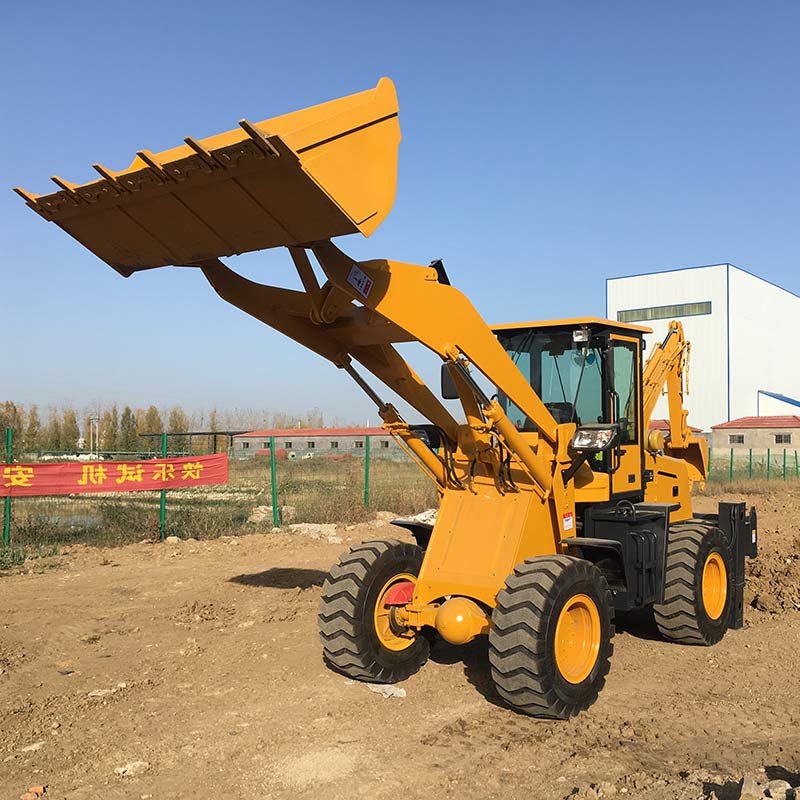

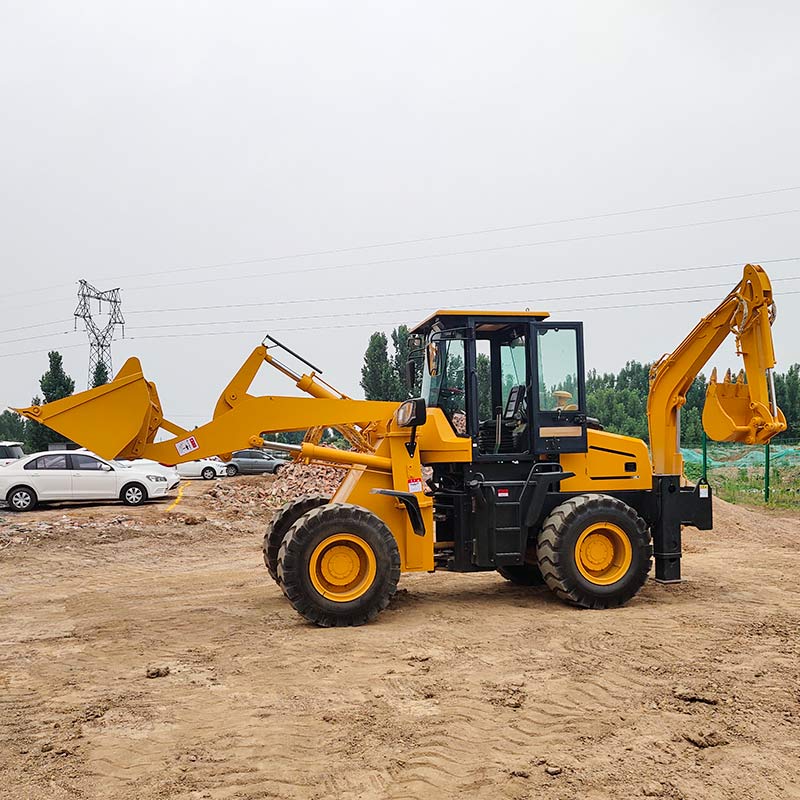

Backhoe Loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to General Construction, Demolitions and Excavations, SDLT backhoes deliver the power and precise handling you need when operating in areas where using larger equipment is not practical.
Rated Power : 92 kw (125 hp)
Rated Power : 0.3 m³
Weight : 6000 kg
The excellent reliability and easy maintenance characteristics of the backhoe loader engine make them feel at ease when buying the vtz series backhoe loader. There are also various engines to choose from. Well-known big brand engine, reliable quality, long-term cooperation with our company!
CAB
The setting of the driver's seat should ensure that the operator has a better view during loading operations, and the driver's seat is usually placed forward.
HYDRAULIC SYSTEM
Through vote, we understand the importance of high-quality and efficient hydraulic systems to the leading backhoe loaders in the construction market. Therefore, the hydraulic components of the vtz series of backhoe loaders only come from leading brands. The engine, pump and hydraulic system are fully synchronized to provide maximum power and faster working cycle, so that users can obtain higher productivity at the same time.
AXIS
High-quality hydraulic shafts are essential for making excellent backhoe loaders. Not only must they bear heavy loads, but they must also convert high hydrostatic torque into off-road power. There is no doubt that one of the great successes of the vtz backhoe loader is its excellent work efficiency and versatility; it can even run on the road. We have conducted many designs and tests and provided data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.
DRIVE
It has good passability, off-road four-wheel drive and strong versatility. In order to make the excavation more powerful, and to reduce the damage of the tire under heavy load, the outrigger should be set up to keep the rear wheel off the ground; the parking time exceeds The rear wheel should be off the ground and should be supported by cushion blocks under the rear suspension.
EASY TO MAINTAIN
Through market research, we believe that simplification is the key to maintenance, repair and replacement of parts. It is this simple idea that promotes the design of the vtz series of loaders. There are no complicated electronic products and no advanced software systems. Any engineering machinery technician can quickly find any problem, find the part that caused the problem and replace it. This minimizes downtime and improves customer satisfaction.
Configuration
Technical parameters of the LTB30-25 BACKHOE LOADER
Dimensions (mm)
6800*2040*2850
Operating Weight
6000 kg
Rated Load
3000 kg
Rated Power
92 kw (125 hp)
Engine Type
Diesel, 4-Cylinder, 4-Stroke, In-line, Water Cooling
Backhoe Capacity
0.3 m³
Loader Capacity
1.5 m³
Backhoe Max. Digging Depth
2600 mm
Backhoe Max. Digging Height
4400 mm
Backhoe Max. Digging Radius
4600 mm
Backhoe Max. Dumping Height
2300 mm
Loader Max. Dumping Height
3500 mm
Loader Max. Dumping Distance
900 mm
Backhoe Max. Breakout Force
28 kn (2856 kg)
Loader Max. Breakout Force
42 kn (4284 kg)
Travel Speed
0 - 30 km/h
Gradeability
30°
Min. Turning Radius
4500 mm
Working Pressure
16 MPa
Wheel Tread
1630 mm
Wheel Base
2670 mm

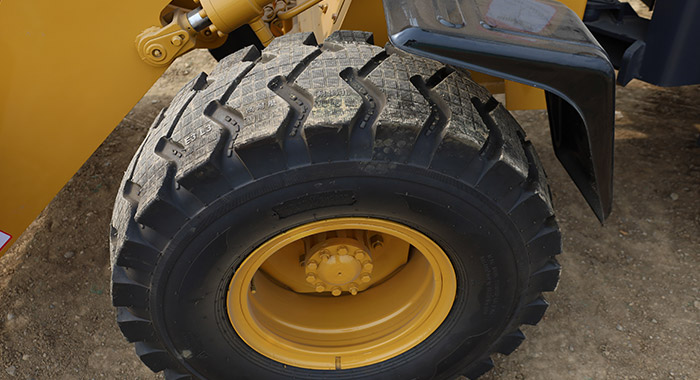

Tire Model
16/70 - 20
Tire Pressure
250 KPa
Transmission Type
Hydraulic
Braking System
Air Assist
ENGINE
The excellent reliability and easy maintenance characteristics of the backhoe loader engine make them feel at ease when buying the vtz series backhoe loader. There are also various engines to choose from. Well-known big brand engine, reliable quality, long-term cooperation with our company!
CAB
The setting of the driver's seat should ensure that the operator has a better view during loading operations, and the driver's seat is usually placed forward.
HYDRAULIC SYSTEM
Through vote, we understand the importance of high-quality and efficient hydraulic systems to the leading backhoe loaders in the construction market. Therefore, the hydraulic components of the vtz series of backhoe loaders only come from leading brands. The engine, pump and hydraulic system are fully synchronized to provide maximum power and faster working cycle, so that users can obtain higher productivity at the same time.
AXIS
High-quality hydraulic shafts are essential for making excellent backhoe loaders. Not only must they bear heavy loads, but they must also convert high hydrostatic torque into off-road power. There is no doubt that one of the great successes of the vtz backhoe loader is its excellent work efficiency and versatility; it can even run on the road. We have conducted many designs and tests and provided data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.
DRIVE
It has good passability, off-road four-wheel drive and strong versatility. In order to make the excavation more powerful, and to reduce the damage of the tire under heavy load, the outrigger should be set up to keep the rear wheel off the ground; the parking time exceeds The rear wheel should be off the ground and should be supported by cushion blocks under the rear suspension.
EASY TO MAINTAIN
Through market research, we believe that simplification is the key to maintenance, repair and replacement of parts. It is this simple idea that promotes the design of the vtz series of loaders. There are no complicated electronic products and no advanced software systems. Any engineering machinery technician can quickly find any problem, find the part that caused the problem and replace it. This minimizes downtime and improves customer satisfaction.
Configuration
Technical parameters of the LTB30-25 BACKHOE LOADER
Dimensions (mm)
6800*2040*2850
Operating Weight
6000 kg
Rated Load
3000 kg
Rated Power
92 kw (125 hp)
Engine Type
Diesel, 4-Cylinder, 4-Stroke, In-line, Water Cooling

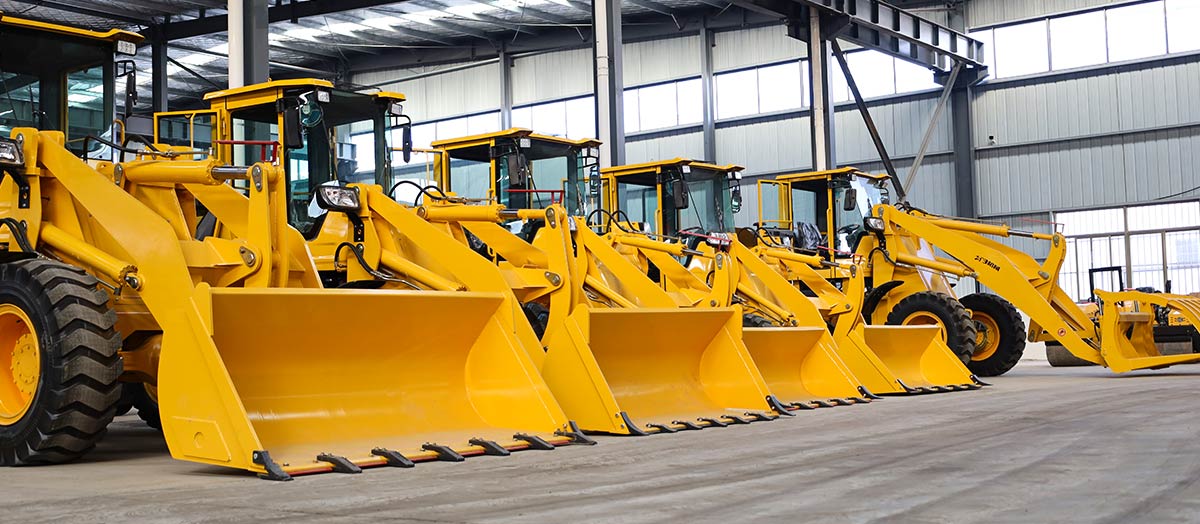

SDLT is specialized in Wheel loaders, Excavator research and produce,we will be stronger and stronger in the future.“Achieve the customer's dream,and keep on creating the supreme value for customers” is our forever missions.
