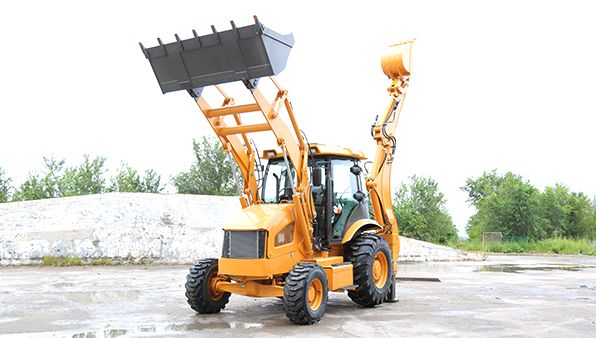

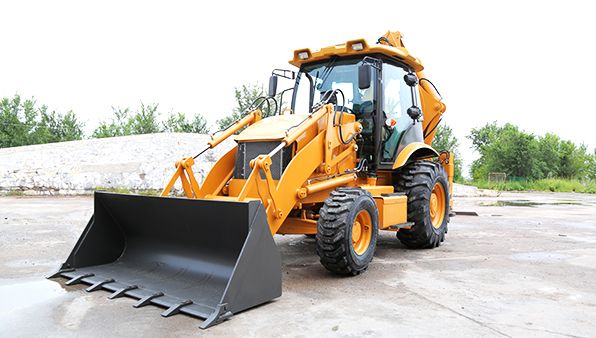

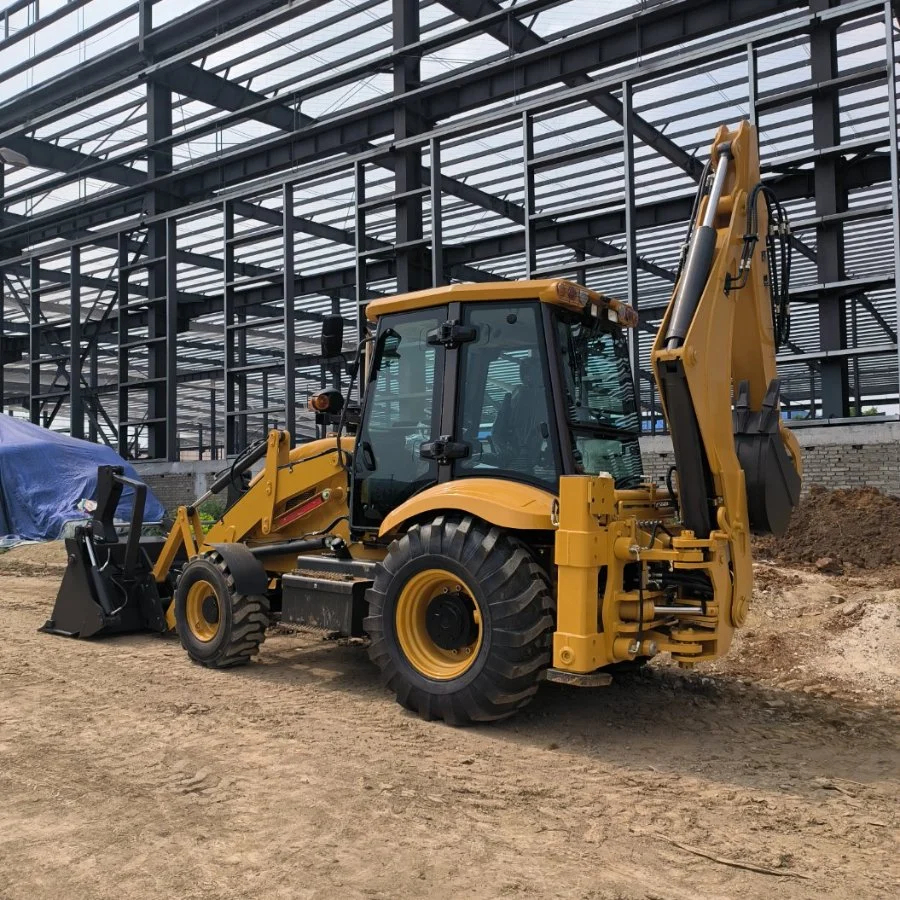

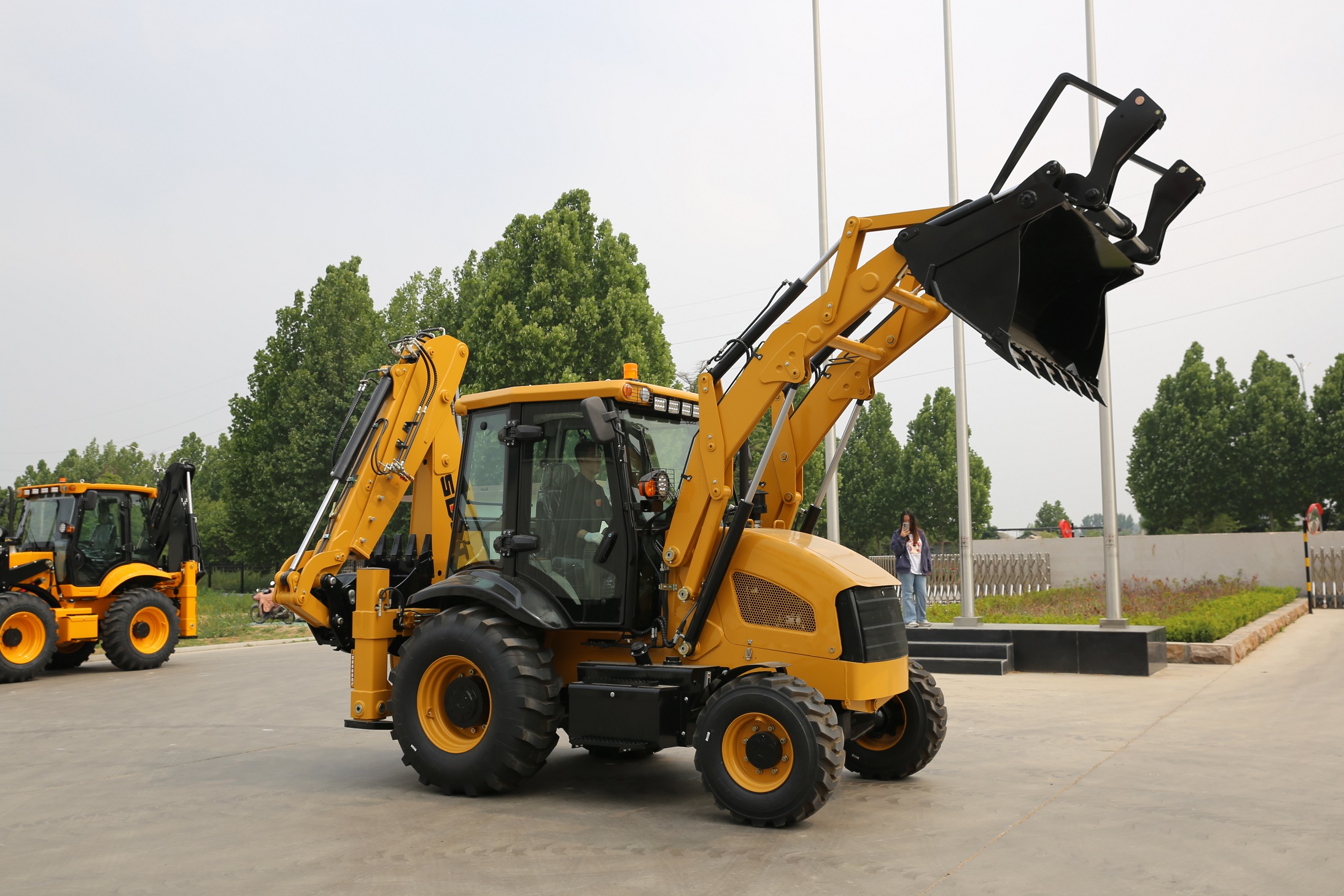

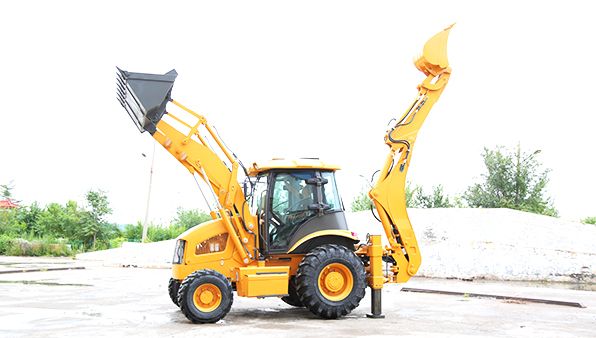

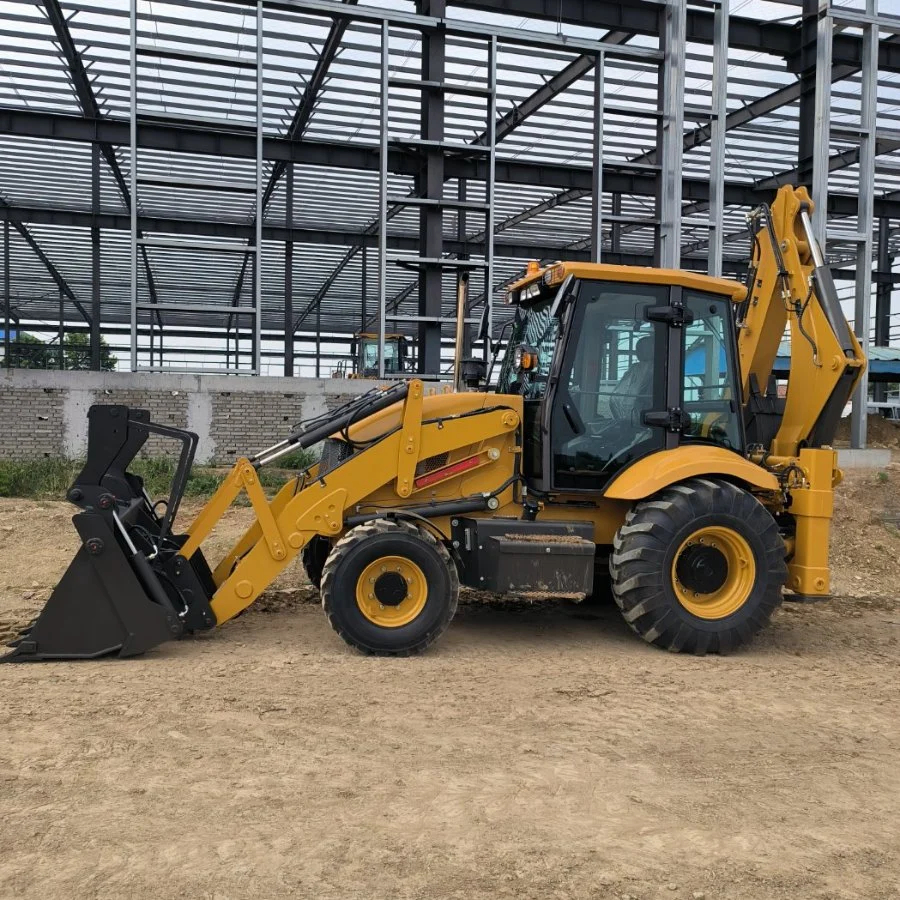

Backhoe Loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to General Construction, Demolitions and Excavations, SDLT backhoes deliver the power and precise handling you need when operating in areas where using larger equipment is not practical.
bucket capacity : 1.0m3
rated power : 74KW
weight : 8200KG

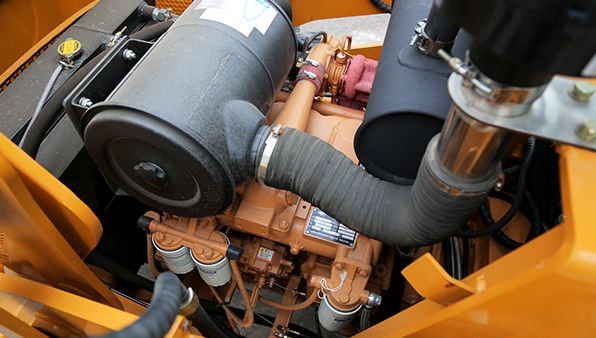

The excellent reliability and easy maintenance characteristics of the backhoe loader engine make them feel at ease when buying the vtz series backhoe loader. There are also various engines to choose from. Well-known big brand engine, reliable quality, long-term cooperation with our company!

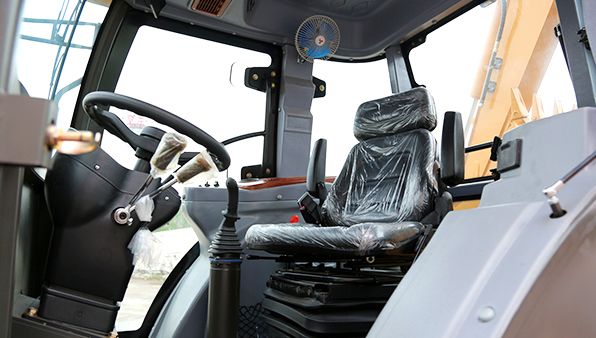

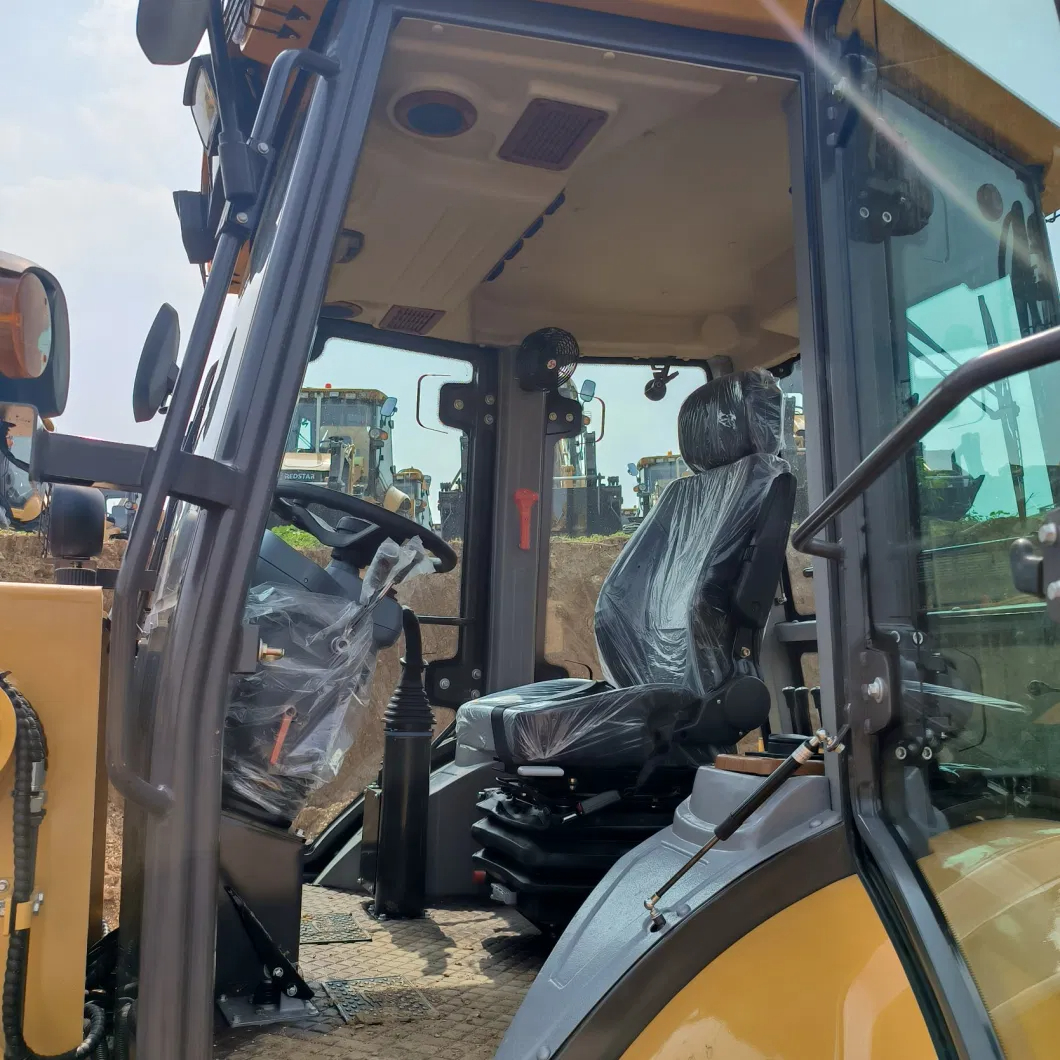

CAB
The setting of the driver's seat should ensure that the operator has a better view during loading operations, and the driver's seat is usually placed forward.

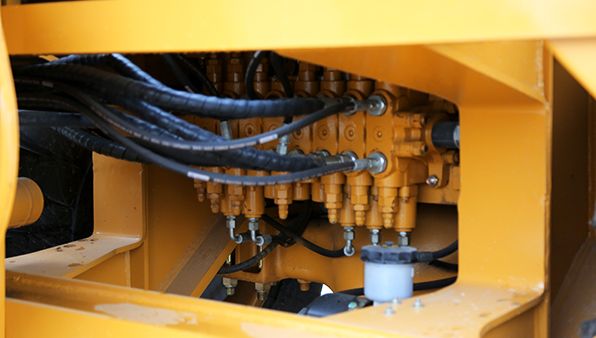

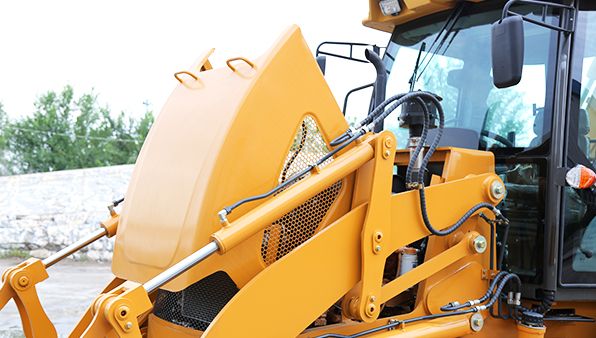

HYDRAULIC SYSTEM
Through vote, we understand the importance of high-quality and efficient hydraulic systems to the leading backhoe loaders in the construction market. Therefore, the hydraulic components of the vtz series of backhoe loaders only come from leading brands. The engine, pump and hydraulic system are fully synchronized to provide maximum power and faster working cycle, so that users can obtain higher productivity at the same time.
AXIS
High-quality hydraulic shafts are essential for making excellent backhoe loaders. Not only must they bear heavy loads, but they must also convert high hydrostatic torque into off-road power. There is no doubt that one of the great successes of the vtz backhoe loader is its excellent work efficiency and versatility; it can even run on the road. We have conducted many designs and tests and provided data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.

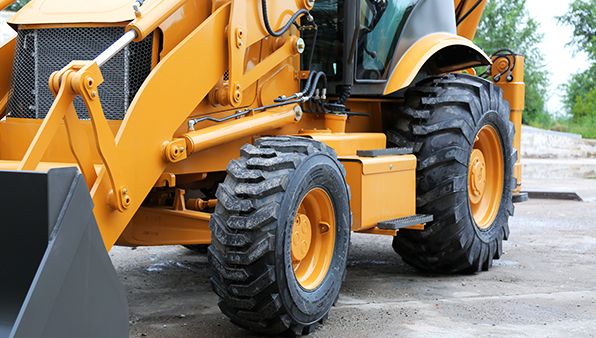

DRIVE
It has good passability, off-road four-wheel drive and strong versatility. In order to make the excavation more powerful, and to reduce the damage of the tire under heavy load, the outrigger should be set up to keep the rear wheel off the ground; the parking time exceeds The rear wheel should be off the ground and should be supported by cushion blocks under the rear suspension.
EASY TO MAINTAIN
Through market research, we believe that simplification is the key to maintenance, repair and replacement of parts. It is this simple idea that promotes the design of the vtz series of loaders. There are no complicated electronic products and no advanced software systems. Any engineering machinery technician can quickly find any problem, find the part that caused the problem and replace it. This minimizes downtime and improves customer satisfaction.
Configuration
Technical parameters of the LTB388 BACKHOE LOADER
Overall Operating Weight
8200KG
Rated dynamic/static Load of front axle
7.5t/18.75t
L*W*H (mm)
5920×2250×3770
Bucket Lowering Time
3.1S
Wheel base
2200mm
Model
TLB1-4WD
Min. Ground Clearance
300mm
Type
Single-stage Three Elements

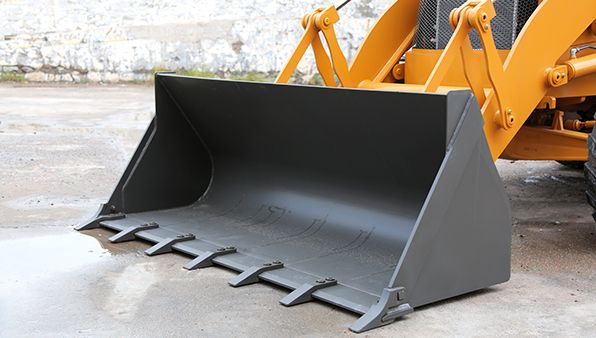

Bucket Capacity
1.0m3
Max. Efficiency
84.4%
Breakout Force
38KN
Inlet Pressure
0.5Mpa
Loading Lifting Capacity
2500KG
Outlet Pressure
1.1Mpa—1.3 Mpa
Bucket Dumping Height
2742mm
Cooling Method
Oil-cooling Pressure Circulation
Bucket Dumping Distance
925mm
Bucket Discharge Time
2.0S
Digging Depth
52mm
Type
Fixed Shaft Power Transmission
Backhoe Capacity
0.3 m3
Oil Pressure of Clutch
1373Kpa—1569 Kpa
Max. Digging Depth
4082mm/4500mm
Gears
four Gears Ahead, four Gears Astern
Swing Angle of Excavator Grab
190o
Max. speed
38Km/h
Max. Pulling Force
39KN
Model
14-17.5/19.5L-24
Rated Power
74KW
Rated Speed
2200r/min
Model
CUMMINS 4BTA3.9—C100
Pressure of Front wheel
0.55 Mpa
Cylinder-Inside Diameter*Stroke
4-102*120
Displacement
3.9L
Min. Fuel Consumption
≤216g/km.h
Service Brak
wet-type
Steering Angle
±33 o
Digging Power of Excavator Grab
46.5KN
Min. turning radius
6950mm
Digging Power of Dipper
31KN
Pressure of the system
12Mpa
Bucket Lifting Time
6.8S
ENGINE
The excellent reliability and easy maintenance characteristics of the backhoe loader engine make them feel at ease when buying the vtz series backhoe loader. There are also various engines to choose from. Well-known big brand engine, reliable quality, long-term cooperation with our company!

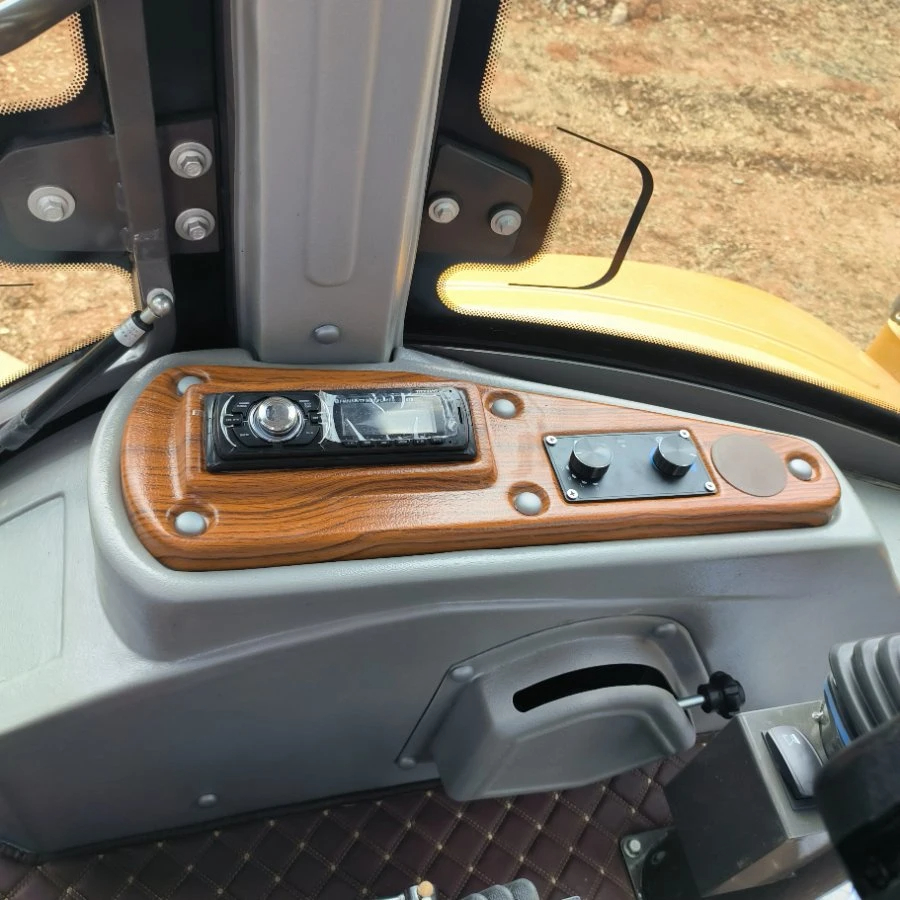

CAB
The setting of the driver's seat should ensure that the operator has a better view during loading operations, and the driver's seat is usually placed forward.
HYDRAULIC SYSTEM
Through vote, we understand the importance of high-quality and efficient hydraulic systems to the leading backhoe loaders in the construction market. Therefore, the hydraulic components of the vtz series of backhoe loaders only come from leading brands. The engine, pump and hydraulic system are fully synchronized to provide maximum power and faster working cycle, so that users can obtain higher productivity at the same time.
AXIS
High-quality hydraulic shafts are essential for making excellent backhoe loaders. Not only must they bear heavy loads, but they must also convert high hydrostatic torque into off-road power. There is no doubt that one of the great successes of the vtz backhoe loader is its excellent work efficiency and versatility; it can even run on the road. We have conducted many designs and tests and provided data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.
DRIVE
It has good passability, off-road four-wheel drive and strong versatility. In order to make the excavation more powerful, and to reduce the damage of the tire under heavy load, the outrigger should be set up to keep the rear wheel off the ground; the parking time exceeds The rear wheel should be off the ground and should be supported by cushion blocks under the rear suspension.
EASY TO MAINTAIN
Through market research, we believe that simplification is the key to maintenance, repair and replacement of parts. It is this simple idea that promotes the design of the vtz series of loaders. There are no complicated electronic products and no advanced software systems. Any engineering machinery technician can quickly find any problem, find the part that caused the problem and replace it. This minimizes downtime and improves customer satisfaction.
Configuration
Technical parameters of the LTB388 BACKHOE LOADER
