u Compact structure, maneuverablemovement suitable for narrow Space operation
u Open cabin with mechanicalcontrol system
u Double accelerograph control

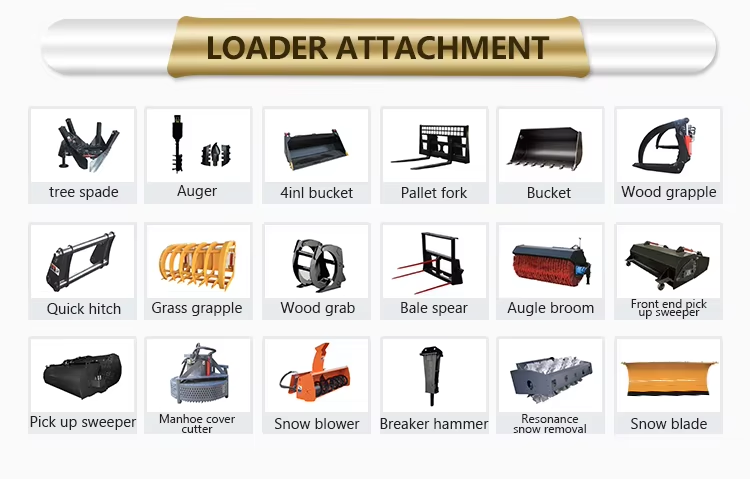

u Multi-function with a widerange of attachments
u Hydraulic brake
-
-
-
A key to share
Rated Operating Capacity | 500 |
Tipping load(Kg) | 1000 |
Bucket Capacity(m3) | 0.25 |
Lifting force(kg) | 1000 |
Hydraulic Pump Flow(L/min) | 40 |
Engine power(HP) | 35 |
Weight(Kg) | 2200 |
Max. Travel Speed(km/h) | 8 |
Grade ability (° ) | 20 |
Tire | 8.5- 15 |
Fuel hyd. Oil capacity(L) | 50/50 |
Dimensions
A. Height at Maximum Extension | 3300mm |
B. Hinge Pin Height | 2725mm |
C. Total Height | 2000mm |
D. Length with Bucket | 2950mm |
E. Length without Bucket | 2300mm |
F. Width with Bucket | 1400mm |
G. Track Width | 1080mm |
H. Wheelbase | 891mm |
J. Ground Clearance | 140mm |
K. Dumping Angle | 40° |
L. Dumping Height | 2050mm |
M. Maximum Reach | 790mm |
-
Rated Operating Capacity
500
Tipping load(Kg)
1000
Bucket Capacity(m3)
0.25
Lifting force(kg)
1000
Hydraulic Pump Flow(L/min)
40
Engine power(HP)
35
Weight(Kg)
2200
Max. Travel Speed(km/h)
8
Grade ability (° )
20
Tire
8.5- 15
Fuel hyd. Oil capacity(L)
50/50
Dimensions
A. Height at Maximum Extension
3300mm
B. Hinge Pin Height
2725mm
C. Total Height
2000mm
D. Length with Bucket
2950mm
E. Length without Bucket
2300mm
F. Width with Bucket
1400mm
G. Track Width
1080mm
H. Wheelbase
891mm
J. Ground Clearance
140mm
K. Dumping Angle
40°
L. Dumping Height
2050mm
M. Maximum Reach
790mm
-
