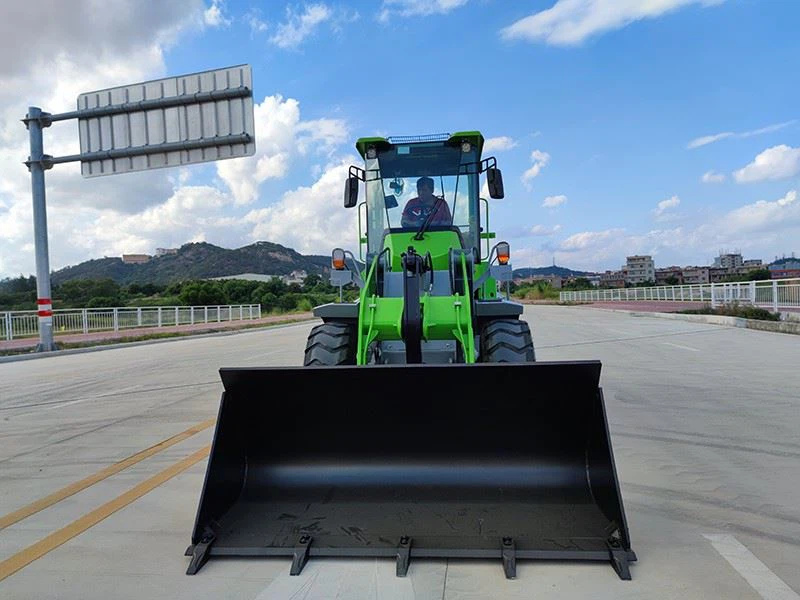

LT1800E 1.8TON ELECTRIC LOADER

Main Features:

1, Equip with lithium battery made by CATL, the product have features of energy saving and environmental protection,  the power system is optimized to meet the requirements of high efficient operation.

2, The energy consumption of the whole machine is reduced by the way of recovery of braking energy.

3, The protection grade of the whole machine is IP67, the motor has an eight-year warranty, the battery can be fully charged and discharged more than 4000 times, with high reliability and long service life.

4, Hydraulic System

a, Adopt full hydraulic load sensing steering device, high and low speed steering performance is consistent, the control is light and flexible,  good performance of linear travel

b, Internal gear pump, priority valve sharing, steering priority, high efficiency in energy saving

c, Equip with Oil radiator and back pressure protection device to the hydraulic system to ensure the thermal balance of the whole machine;

d, Additional driving gearbox with coaxial connection between pump motor and traveling motor, to increase the surging force of the whole machine when shoveling.

5, Using articulated frame that reduce turning radius, flexible, suitable for all operating condition.

6, Adopt double rocker arm to reverse six connecting rod mechanism, that bring with big lifting force, strong shovel cutting and high working efficiency.


  • Selling point
  • Configuration
  • Customer case
  • Relevant
We Accept:
LT1800E 1.8TON ELECTRIC LOADER


Main Technical Paramaters of bettery electrical front loader:

Items

Specifications

Basic Parameter

Electric Consumption Rate

10-15 degree/h (variance with   working condition

Loading Rate

1800kg

Bucket Capacity

1m3

Up digging Force

47KN

Operating Weight

5200kg

Max.Dumping Height

2450mm

Dumping Distance 45°Angle

850mm

Transmission System

Transmission

Mechanical Transmission

Transmission Gear

Forward 2 /Reverse 1

Max. Speed of Forward I

10km/h

Max. Speed of Forward II

26km/h

Max. Speed of Reverse I

10km/h

Grade ability

57%

Traction

57kN

Parameter of Travel Motor

Motor Type

Permanent Magnet Synchronous Motor

Motor Rated

75kW

Motor   operating efficiency range

86%-98%

Parameter of Main Pump Motor

Motor Type

Permanent Magnet Synchronous Motor

Motor Rated

30kW

Motor   operating efficiency range

86%-98%

Battery

Type

LiFePO

Battery   rated storage capacity

109.3Kwh

Rated Capacity of Battery

202AH

Rated Voltage

541V

Rounds   of full charge and discharge cycles



more than 4000 times

Theoretical Service Life

over 8 years

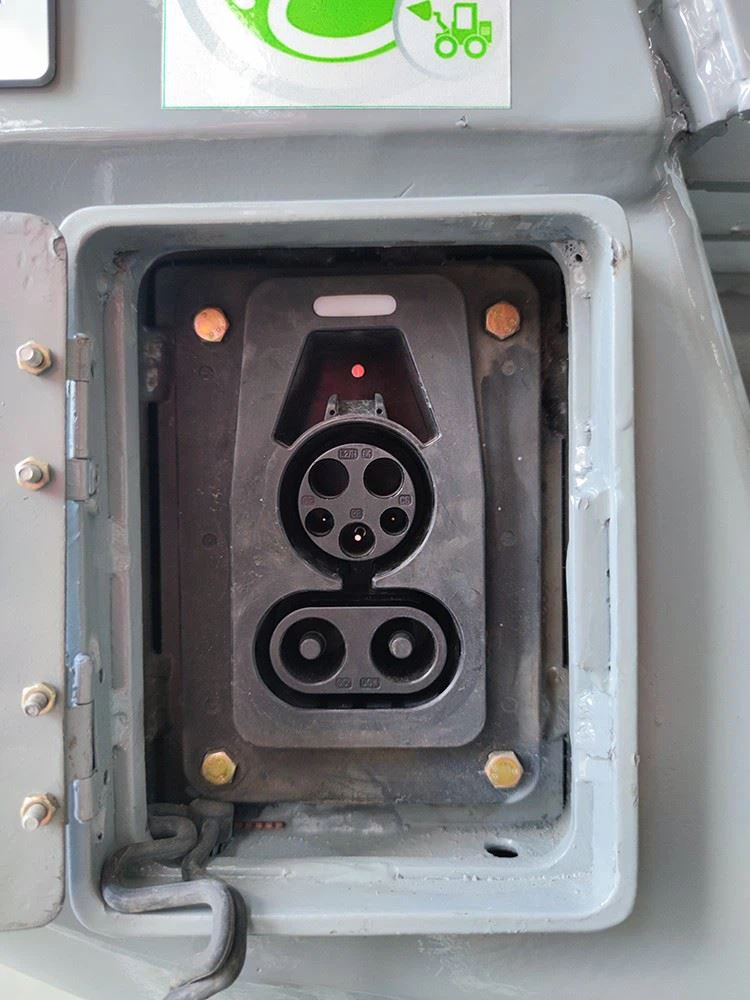

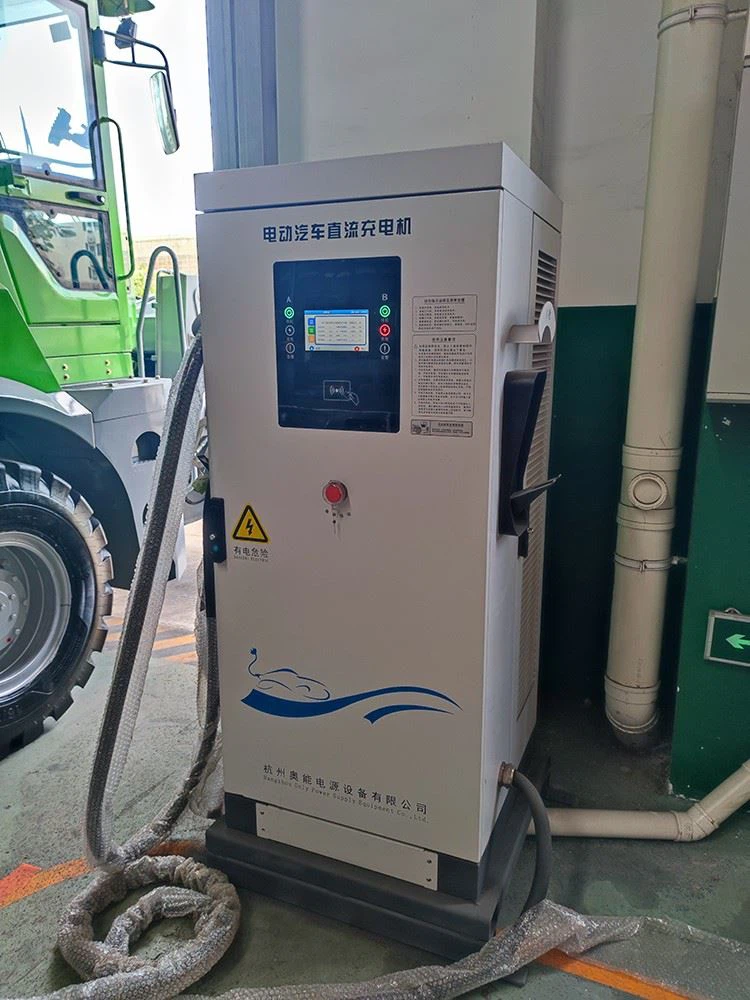

Charge time

0.6-1.5hVariance with the   Charger

Hydraulic System

Pressure

20 MPa

Flow Rate

150 L/min

Raising Time

5 s

Total cycle time

10 s

Steering System

Steering   gear Model

BZZ5-E315C

Pressure

16 MPa

Steering Type

Articulated frame steering

Steering Angle

30°

Brake Mode

Travel brake

Clamp disc brake

Brake air pressure

0.5-0.7 MPa

Parking Brake

Air push oil disc brake

Dimension

Overall Height

2800mm

Overall Width

1920mm

Overall Length

6000mm

Wheel base

2240mm

Wheel Tread

1482mm

Bucket with

2000mm

Ground Clearance

290mm

Turning Radius( External)

≥4970mm

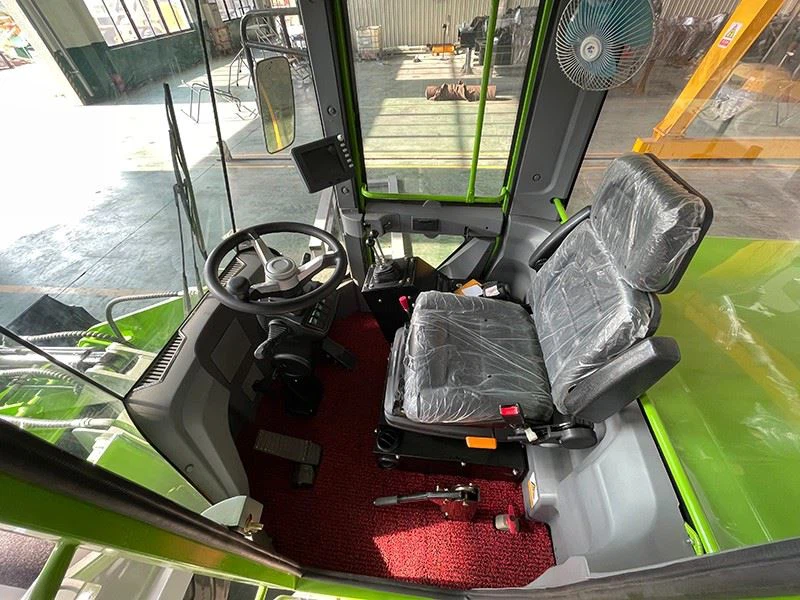

Driver position

Central


Driver seat

Sited


Standard Tires (Pneumatically)

Nos. of Wheels

2/2

Driving  Wheel

4 wheels Driving

Size of Tire

16/70-20PR
