TL1500CE Telescopic loader

TL1500 Wheel Loader Advantage:

1.The telescopic boom which can reach 4.5m greatly increase its working scope.
2.The articulated structure and axle transmission design makes it powerful and has better pass through ability
3.The seals, valve & joystick are famous oversea products which guarantee that it's a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Quick coupling system, joystick and buttons makes the operating easy and convenient



  • Selling point
  • Configuration
  • Customer case
  • Relevant
We Accept:
TL1500CE Telescopic loader

Telescopic wheel loader

TL telescopic wheel loader is particularly ideal for those who need more lift height. In addition to functionality, a high level of working comfort and excellent safety standards, these machines have a telescopic arm that provides considerably greater lift height and coverage.

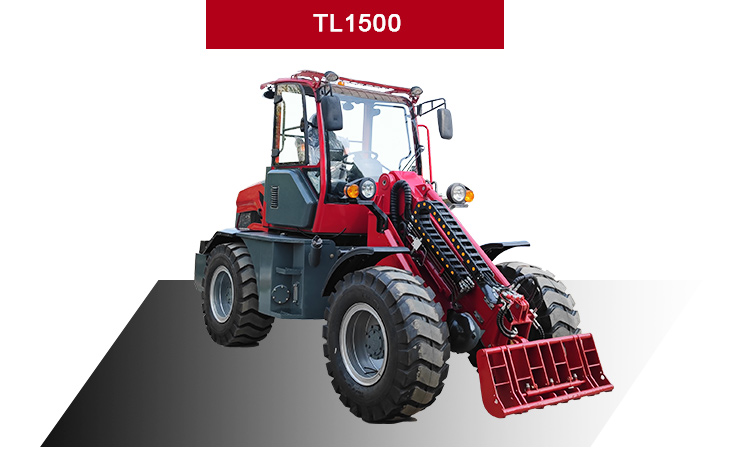

TL1500CE Telescopic loader(图1)
Overall Dimensions (L*W*H)
4450*1900*2730mm
Tire Model
20.5-16, 12ply
Max. Lifting Height
4500mm
Max. Height to the Pin
4200mm
Rated Load
1500kgs -1800kgs
Max. Speed
17km/h
Transmission System
Hydraulic Converter+Drive Shaft+Axles
Wheelbase
2430mm
Min Turning Radius
4970mm
Wheel Track
1345mm
Weight
4360kg
Engine Model
Yunnei YN27
Kohler KDI1903TCR
Engine power
58KW(79HP)
42KW(56HP)
Rated Speed
2400 r/p.min
2600 r/p.min
Engine cooling way
Water cooling
Water cooling
Number of Cylinders
3
3
Engine type
4 cycle diesel Engine
4 cycle diesel Engine
Emission Standard
Chinese II
EPA Tier 4
