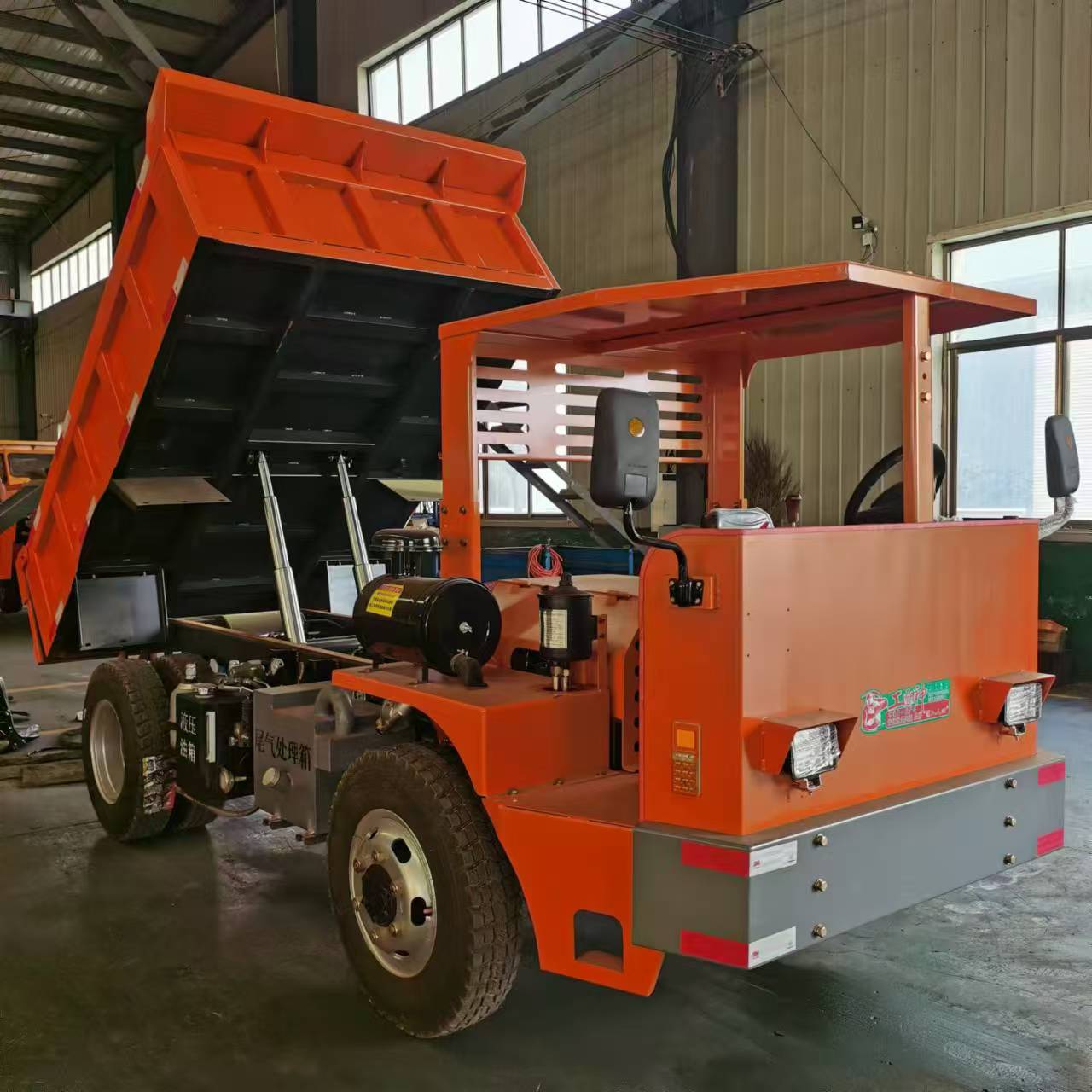

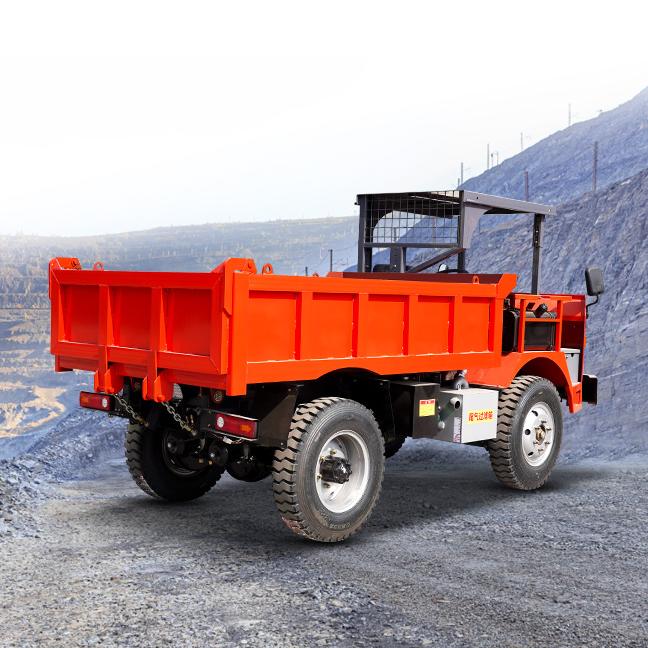

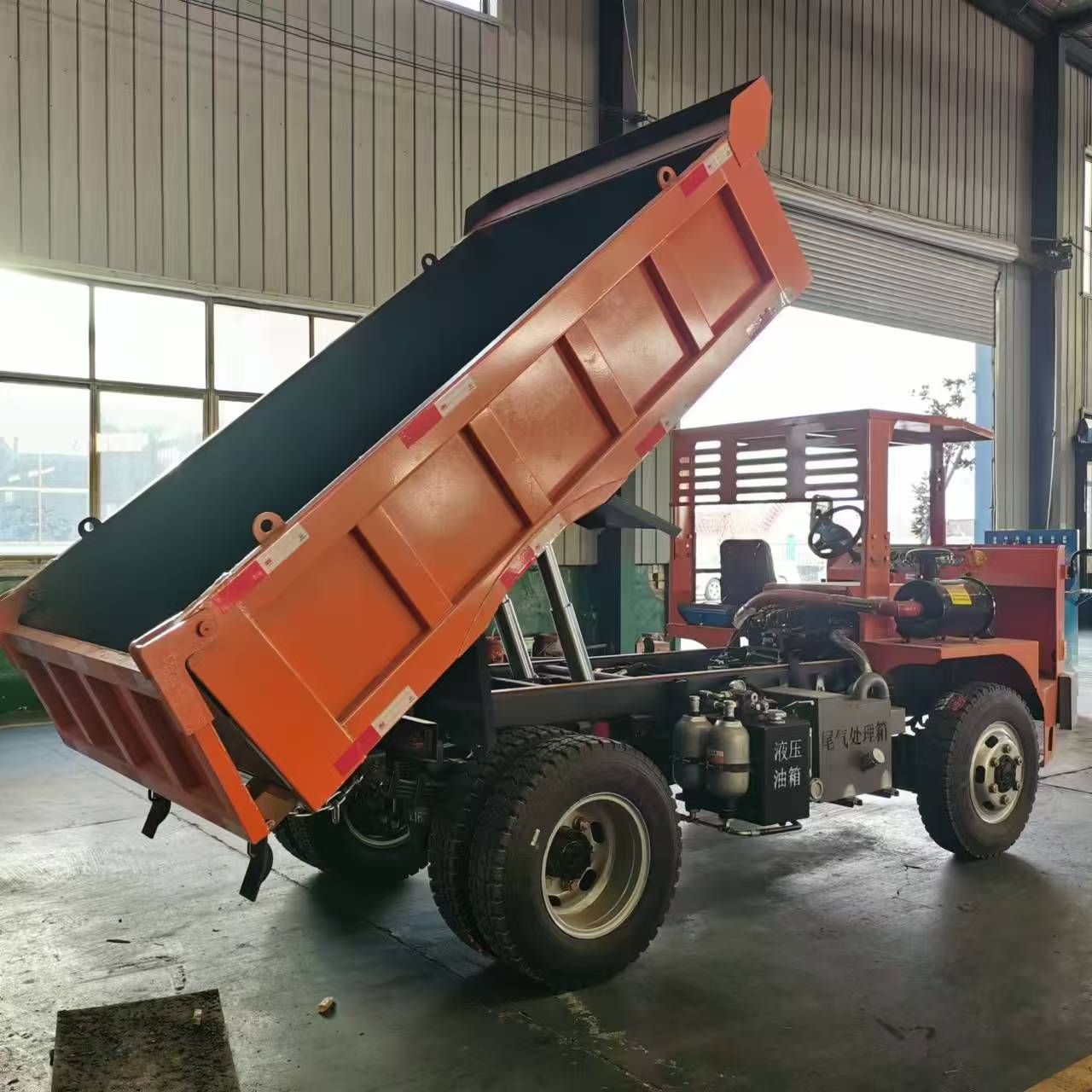

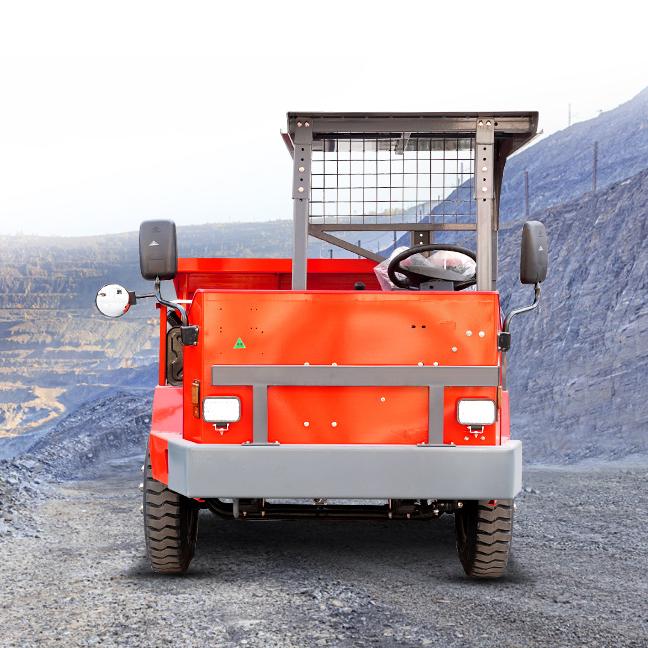

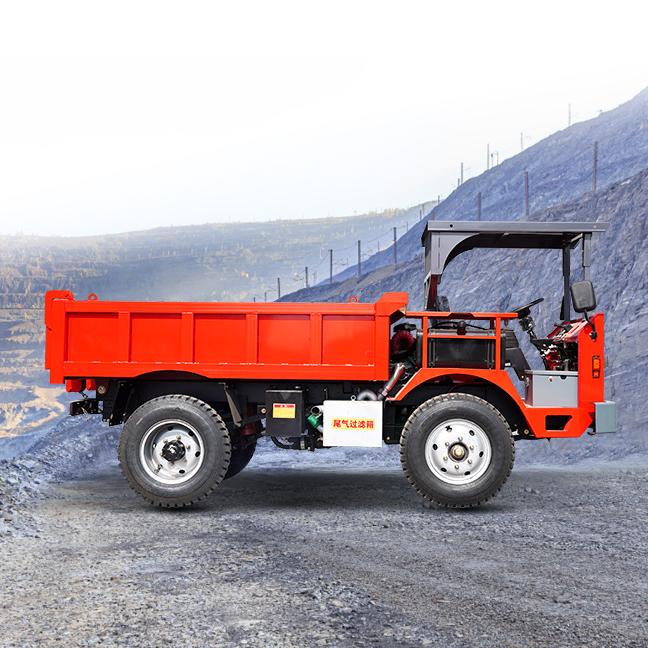

LTUQ-6T8 8TON MINING DUMPER

Best price 3 Ton 4Ton 6Ton 8Ton hydraulic diesel mine tunnel transport dump truck

Mine transport vehicle precautions
1. It is forbidden for anyone to lift the upper and lower excavators and deliver articles during the operation. It is not allowed
to maintain while working; do not adjust the engine and hydraulic system and electric control system at will; pay attention to selecting and creating a reasonable working surface.

2. When the material is unloaded, it should be stopped after the vehicle is stopped; when the material is not hitting any part of the dump truck, the height of the bucket should be lowered; the bucket is crossed from the top of the dump truck.

3. It is forbidden to use a bucket to crush a solid object; if it encounters a large stone or a hard object, it should be removed first and then continue to work; it is forbidden to excavate the rock of level 5 or above.

4. In the process of agricultural operation and operation, it is necessary to check whether the temperature of the hydraulic oil is normal.

5, four is not like the car in the operation of the wire, crossroads, bridges and culverts, understand the situation and then
pass, if necessary, set a special person command; the distance between the excavator and the high-voltage wire should not be lessthan 5m; should avoid walking backwards as much as possible.


  • Selling point
  • Configuration
  • Customer case
  • Relevant
We Accept:
LTUQ-6T8 8TON MINING DUMPER

Load capacity
5-6ton
8-10ton
10-12ton
14ton
 Fuel Type
Diesel
Diesel
Diesel
Diesel
 EngineMode
490 Yunei490
Yunnei 4102 turbocharged
Yuchai4105 turbocharged
Yuchai 4108 intercooled turbocharged
 Engine Power
46KW
81KW(
90KW
118KW
Front Axle
S179
S184
SL540
DF153
Braker
Wetbrake
Wet brake
 Wet brake
Wet brake
back track
1630mm
1770mm
2150mm
2250mm
front track
1630mm
1770mm
1900mm
2100mm
Wheelbas
2400mm
2620mm
2650mm
290omn
 Tire mode
700-16radial tire(double Rear tire)
750-16Radial tire (Double rear double)
825-16Radial tire(Double Rear tire)
 900-20 radial tire(double Rear tire)
Overall dimension
长(L)4600mm*宽(W)1630mm*高(H)1450mm
长(L)5200mm*宽(W)1770mm*高(H)1750mm
长(L)5100mm*宽(W)2150mm*高(H)1750mm
长(L)5700mm*宽(W)2250mm*高(H)1990mm
货箱板材厚度 Cargo box pla
底(Bottom)8mm边(side)5mm
底(Bottom)10mm边(side)5mm
底(bottom)10mm边(side)6mm
底(Bottom)10mm边(side)5mm
(m³) Cargo box
2.2
4.1
5.0
6.0
Load capacity
5-6
8-10
10-12
14
Climbing abiity
25%
25%
25%
25%
