Excavators have already been one of the most popular construction machine in the application of farm,family,construction project,energy and mining working.
Bucket Capacity : 0.09m³
Power：26HP
Operating Weight：3380KG
The excellent reliability and easy maintenance of Yanmar engines give customers the peace of mind when purchasing the vtw series excavators. There are also a variety of engines to choose from.
Well-known big brand engines, reliable quality, our company has long-term cooperation!

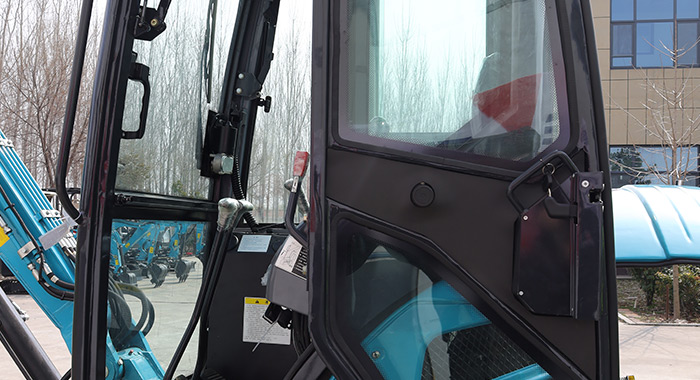

CAB

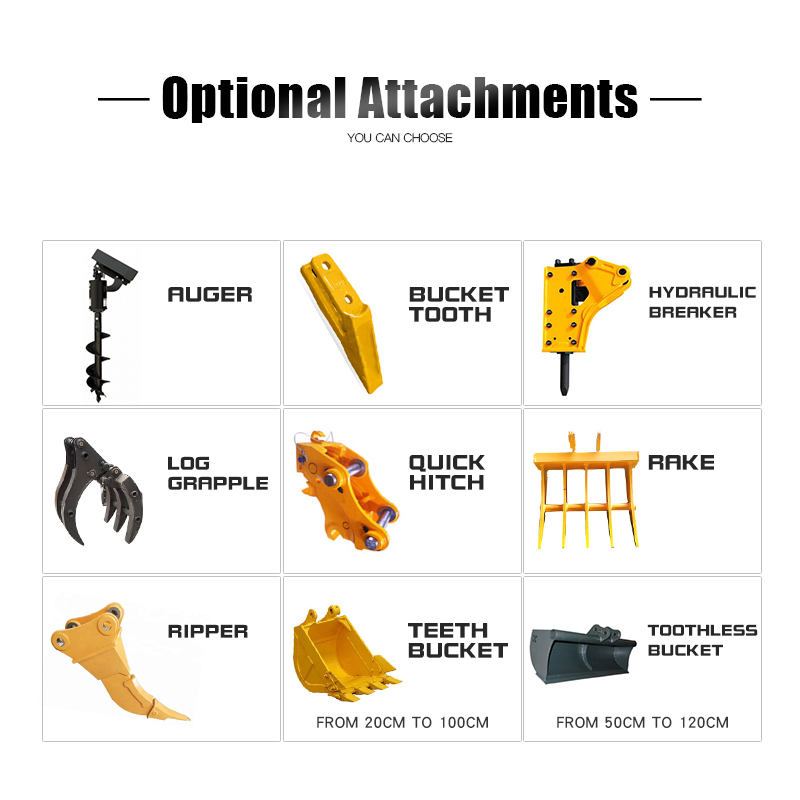

The unique design prevents cutting corners; the seat position and narrow digging arm provide first-class vision while maintaining maximum stability.More Accessories And Accessories Are Available!
When using the vtw series excavator, it is simple and easy to operate. Many customers reacted simply and easily during the first operation.

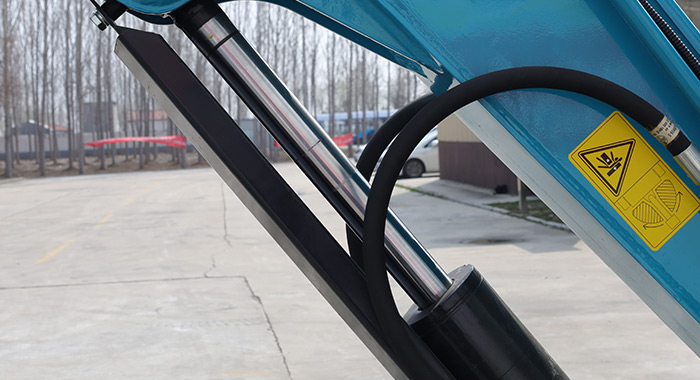

HYDRAULIC SYSTEM
At vote, we understand the importance of high-quality and high-efficiency hydraulic systems for building market-leading excavators. Therefore, the hydraulic components of the vtw series excavators only come from leading brands.
Yanmar engines, pumps and hydraulic systems are perfectly synchronized to provide maximum power and faster working cycles, so that users can obtain higher productivity in the same time.

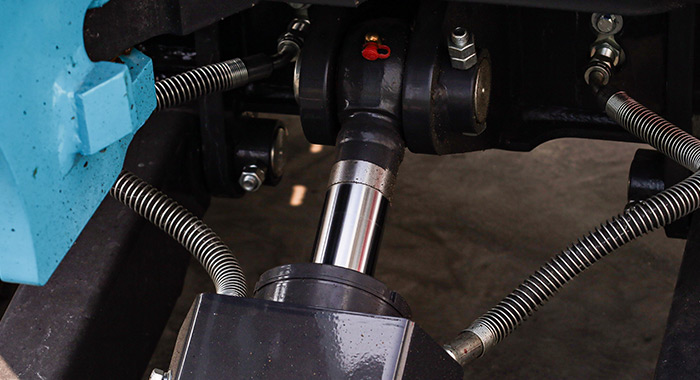

AXLE
High-quality hydraulic shafts are essential for making excellent excavators. Not only must they bear heavy loads, but they must also convert the high torque of hydrostatic power into digging force.
There is no doubt that one of the great successes of the vtw excavator is its excellent power. In order to achieve this goal, we designed and tested many times and fed back data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.

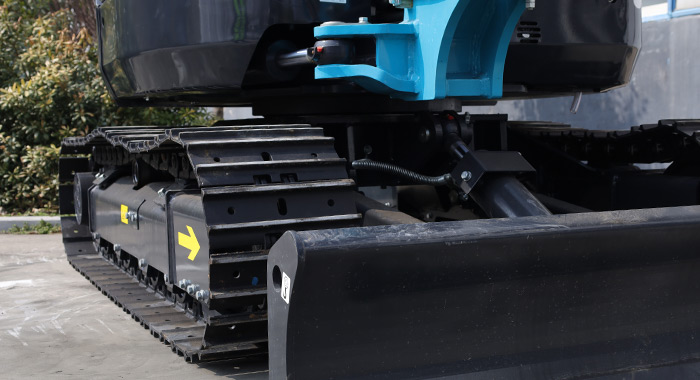

TRACK
The vtw series crawler excavator is equipped with a telescopic chassis system, in order to better deal with various harsh environments and better complete the work.
The Crawler Is Not Affected By Road Conditions. The Excavator Can Work In A Sloping Environment, But The Crawler Type Can Work On It. The Crawler Type Has Good Grip And Flexible Steering.
EASY MAINTENANCE SIMPLICITY
At Vote, We Believe That Simplification Is The Key To Maintenance, Repair And Replacement Of Parts. It Is This Simple Idea That Promotes The Design Of The Vtw Series Of Small Excavators.
There Are No Complicated Electronics Nor Advanced Software Systems. Any Construction Machinery Mechanic Can Quickly Identify Any Issues, Locate The Part Causing The Problem And Replace It. This Minimizes Downtime And Improved Customer Satisfaction.
Configuration

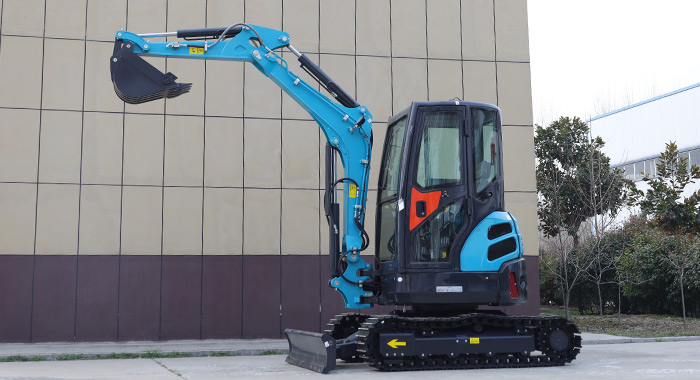

Technical parameters of the E35S EXCAVATOR
Total measurement
Scope of work
Performance parameter
Total length (during transportation)
4485mm
Maximum digging height
4600 mm
Operating Weight
3380KG
Overall width (during transportation/operation)
1550mm
Maximum unloading height
3175 mm
Bucket Capacity
0.09 m³
Total height (during transportation)
2440mm
Maximum digging depth
2880 mm
engine model
3TNV88-BSBY
Dozer blade width (extend/retract)
1550mm
Maximum vertical boom digging depth
2305 mm
Displacement
1.64 L
Dozer blade height
335mm
Maximum digging distance
4965 mm
Power
26HP
Track center distance
1250mm
Maximum digging distance
4845 mm
Walking speed (high/low)
3.0/4.2 KM/h
Distance from the center of rotation to the tail of the track
1030mm
Minimum radius of gyration of the front section
2035 mm
Swing speed
8.5 r/min
Standard track shoe width
300mm
The minimum radius of gyration at the rear end
790 mm
Swing angle
70/50 °
Minimum ground clearance
290mm
Maximum bulldozing height
360 mm
Gradeability
58（30）
Standard bucket width (with/without side teeth)
250/470mm
Maximum bulldozing depth
340 mm
Ground pressure
28.4（0.29）
Track length
2100mm
Bucket moves horizontally to the left
635 mm
Bucket digging force
26.5 KN
Wheel spacing
1665mm
Bucket moves horizontally to the right
600 mm
Fuel tank capacity
40 L

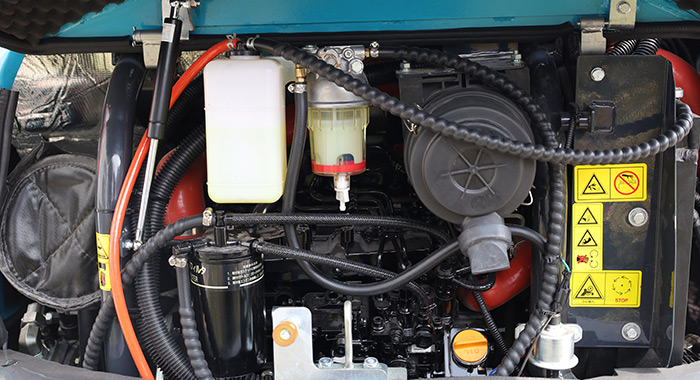

ENGINE
The excellent reliability and easy maintenance of Yanmar engines give customers the peace of mind when purchasing the vtw series excavators. There are also a variety of engines to choose from.
Well-known big brand engines, reliable quality, our company has long-term cooperation!
CAB
The unique design prevents cutting corners; the seat position and narrow digging arm provide first-class vision while maintaining maximum stability.More Accessories And Accessories Are Available!
When using the vtw series excavator, it is simple and easy to operate. Many customers reacted simply and easily during the first operation.
HYDRAULIC SYSTEM
At vote, we understand the importance of high-quality and high-efficiency hydraulic systems for building market-leading excavators. Therefore, the hydraulic components of the vtw series excavators only come from leading brands.
Yanmar engines, pumps and hydraulic systems are perfectly synchronized to provide maximum power and faster working cycles, so that users can obtain higher productivity in the same time.
AXLE
High-quality hydraulic shafts are essential for making excellent excavators. Not only must they bear heavy loads, but they must also convert the high torque of hydrostatic power into digging force.
There is no doubt that one of the great successes of the vtw excavator is its excellent power. In order to achieve this goal, we designed and tested many times and fed back data. By doing this, we can fully control its quality and ensure that users get the best performance year after year.
TRACK
The vtw series crawler excavator is equipped with a telescopic chassis system, in order to better deal with various harsh environments and better complete the work.
The Crawler Is Not Affected By Road Conditions. The Excavator Can Work In A Sloping Environment, But The Crawler Type Can Work On It. The Crawler Type Has Good Grip And Flexible Steering.
EASY MAINTENANCE SIMPLICITY
At Vote, We Believe That Simplification Is The Key To Maintenance, Repair And Replacement Of Parts. It Is This Simple Idea That Promotes The Design Of The Vtw Series Of Small Excavators.
There Are No Complicated Electronics Nor Advanced Software Systems. Any Construction Machinery Mechanic Can Quickly Identify Any Issues, Locate The Part Causing The Problem And Replace It. This Minimizes Downtime And Improved Customer Satisfaction.
Configuration
Technical parameters of the E35S EXCAVATOR
Total measurement
Scope of work
Performance parameter
Total length (during transportation)
4485mm
Maximum digging height
4600 mm
Operating Weight
3380KG
Overall width (during transportation/operation)
1550mm
Maximum unloading height
3175 mm
Bucket Capacity
0.09 m³
Total height (during transportation)
2440mm
Maximum digging depth
2880 mm
engine model
3TNV88-BSBY
Dozer blade width (extend/retract)
1550mm
Maximum vertical boom digging depth
2305 mm
Displacement
1.64 L
Dozer blade height
335mm
Maximum digging distance
4965 mm
Power
26HP
Track center distance
1250mm
Maximum digging distance
4845 mm
Walking speed (high/low)
3.0/4.2 KM/h
Distance from the center of rotation to the tail of the track

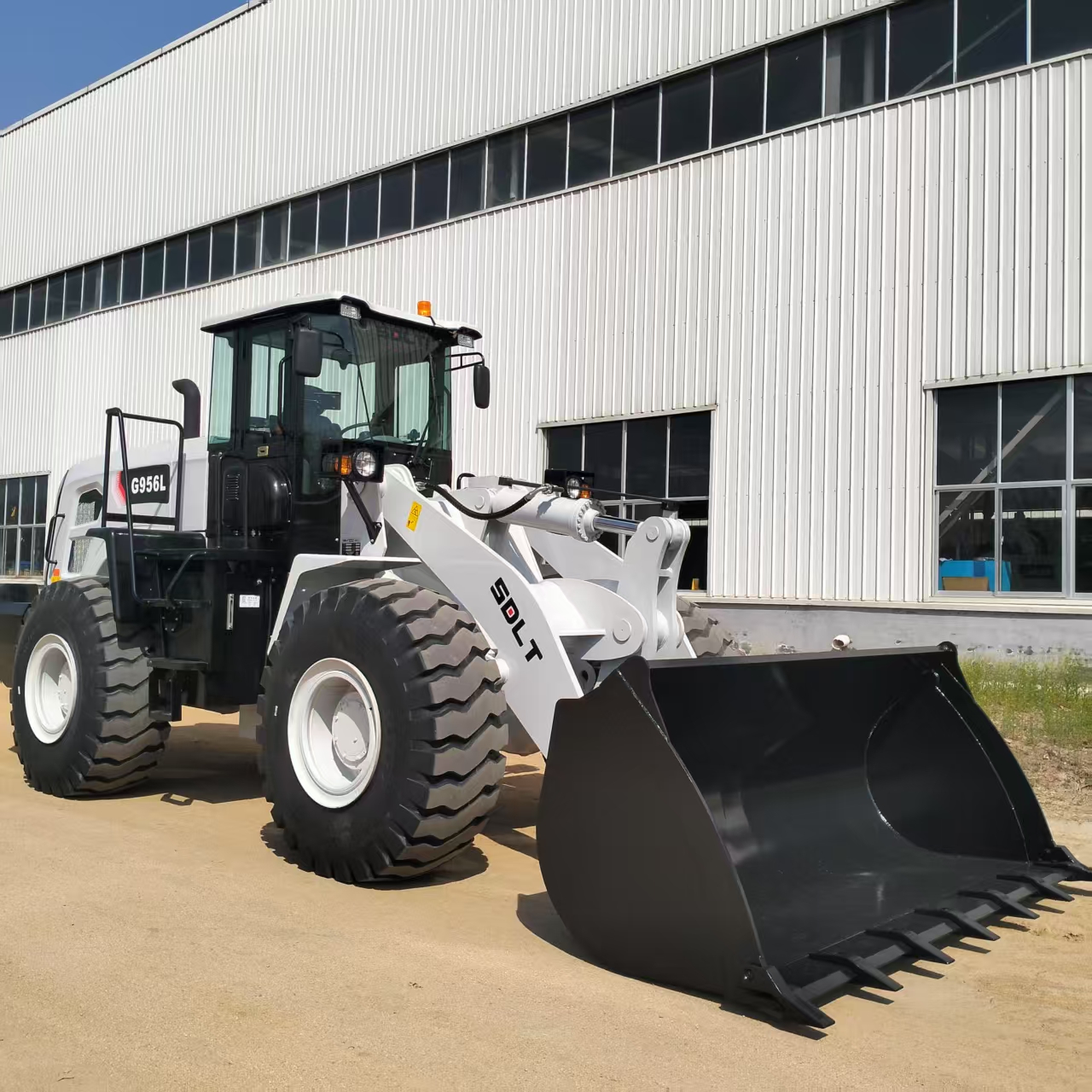

SDLT is specialized in Wheel loaders, Excavator research and produce,we will be stronger and stronger in the future.“Achieve the customer’s dream,and keep on creating the supreme value for customers” is our forever missions.
