CPD-15 1.5TON Electric forklift

　放大1倍

Electric forklifts are known for their efficiency in a variety of settings. They are quieter and produce fewer emissions than their internal combustion engine counterparts, making them an ideal choice for indoor or enclosed spaces. They also require less maintenance, as they do not have the same number of moving parts as traditional forklifts. Pallet jacket power has a long battery life, allowing for longer periods of continuous use without the need for recharging. Whether they are new or used electric forklifts, they are a smart choice for warehouses and distribution centers that want to reduce their environmental impact and operating costs. Rated Capacity：1500kg Battery Weight：165kg Wheel Base：1550mm

 Request Quote Name Email Whatsapp number / Phone number Leave your message
 product manual
 A key to share

Selling point
Configuration
Customer case
Relevant
 Request Quote

Name

Email

Whatsapp number / Phone number

Leave your message

 Request price

Name

Email

Whatsapp number / Phone number

Leave your message
 Back to previous

CPD-15 1.5TON Electric forklift

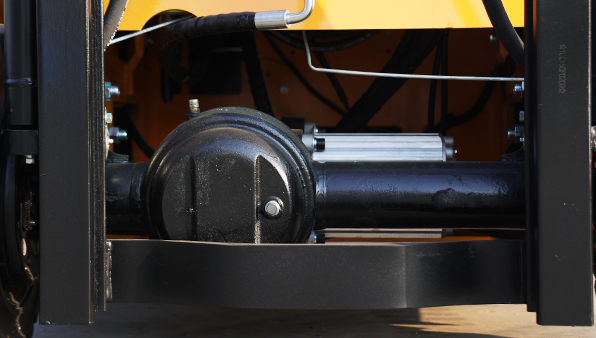

	Axle Our forklift axle is a small-tonnage forklift dedicated axle that is equipped with a matching system of the same brand as top line brands. The box and bridge are designed integrally.

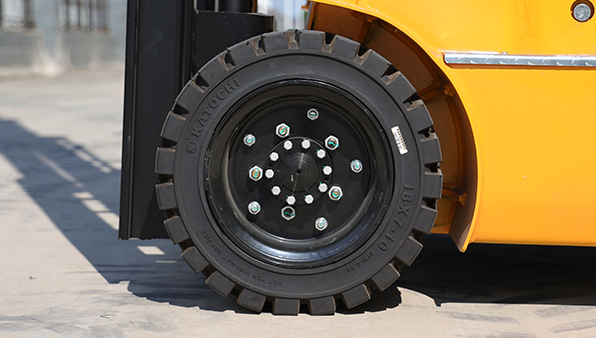

Tires We use natural rubber tires, which are wear-resistant, quiet with strong anti-recoil ability, long service life, and safe and reli-able.

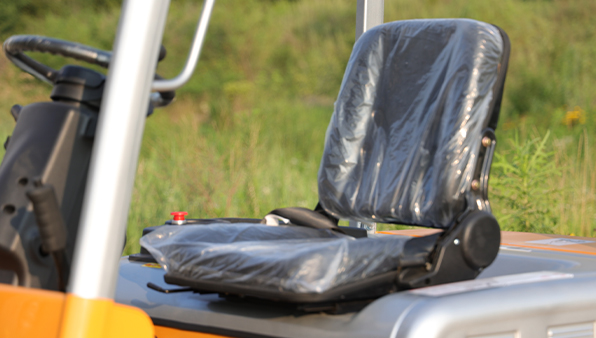

	Comfort Configuration The seat of the German brand Linde is comfortable and durable;the seat is newly added with human-machine induction, and when the seat is unoccupied, other operations are invalid, pre-venting accidental injury and greatly enhancing the safety of forklift driving.

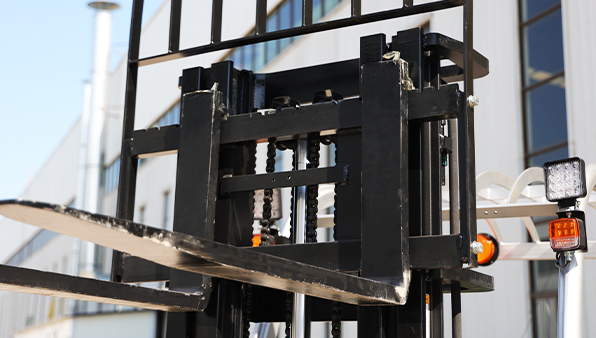

Shelf The whole is welded with high-strength steel plates, and rein-forced steel plate skeletons are assembled at important stress-bearing parts, so that the load will not be deformed when the load is lifted, and it is firm, reliable, and safe.

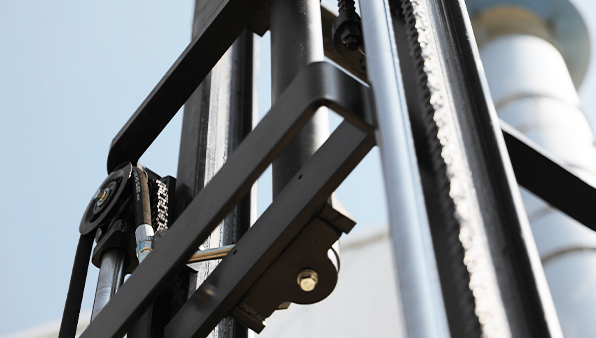

	Mast Our Mast adopts the best quality manganese steel profiles, which are welded with integral steel plates, thick and durable strong toughness, and high safety factor.

Characteristics		Size
Model	CPD-15	Front overhang	325mm
Driving mode	Seated	Tilt of the mast,front/rear	5/10°
Rated capacity	1500kg	Height,mast retraction	2030mm
Road center distance	500mm	Free lift height	/
Power mode	Lead-acid battery	Overall maximum lift height	3000mm
Wheelbase	1430mm	Height,mast extended	4055mm
Tyre		Overhead guard height	2110mm
Tyre type	Solid tire	Lateral Fork Adjustment(Outside of Forks)Max/Min	970/200mm
Front track	920mm	Fork size(LWT)	35100920mm
Rear track	898mm	Truck body length(fork excluded)	2135mm
Tyre(front)	18*7-10	Truck body width	1096mm
Tyre(rear)	16*6-8	Turning radius	2070mm
Performance		Groubd clearance under mast	88mm
Travel speed,laden/unladen	7.5/8.5km/h	Ground clearance at center of wheelbase(laden)	110mm
Lifting speed,laden/unladen	200/220mm/s	Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)	3750mm
Lowering speed,laden/unladen	450mm/s	Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)	3950mm
Maximum negoniable gradient,laden/unladen	15/20%	Electrical configuration
Weight		Drive motor power-60 minutes	5(permanent magnet synchronization)kW
Service mass(with battery)	2130kg	Lift motor power-15 minutes	4.5(permanent magnet synchronization)kW
Battery voltage /nominal capacity	60V/150Ah	Drive motor controlling mode	MOSFET/PMSM
Battery weight	207kg	Lifting motor controlling mode	MOSFET/PMSM



	Axle Our forklift axle is a small-tonnage forklift dedicated axle that is equipped with a matching system of the same brand as top line brands. The box and bridge are designed integrally.
Tires We use natural rubber tires, which are wear-resistant, quiet with strong anti-recoil ability, long service life, and safe and reli-able.
	Comfort Configuration The seat of the German brand Linde is comfortable and durable;the seat is newly added with human-machine induction, and when the seat is unoccupied, other operations are invalid, pre-venting accidental injury and greatly enhancing the safety of forklift driving.
Shelf The whole is welded with high-strength steel plates, and rein-forced steel plate skeletons are assembled at important stress-bearing parts, so that the load will not be deformed when the load is lifted, and it is firm, reliable, and safe.
	Mast Our Mast adopts the best quality manganese steel profiles, which are welded with integral steel plates, thick and durable strong toughness, and high safety factor.

Characteristics		Size
Model	CPD-15	Front overhang	325mm
Driving mode	Seated	Tilt of the mast,front/rear	5/10°
Rated capacity	1500kg	Height,mast retraction	2030mm
Road center distance	500mm	Free lift height	/
Power mode	Lead-acid battery	Overall maximum lift height	3000mm
Wheelbase	1430mm	Height,mast extended	4055mm
Tyre		Overhead guard height	2110mm
Tyre type	Solid tire	Lateral Fork Adjustment(Outside of Forks)Max/Min	970/200mm
Front track	920mm	Fork size(LWT)	35100920mm
Rear track	898mm	Truck body length(fork excluded)	2135mm
Tyre(front)	18*7-10	Truck body width	1096mm
Tyre(rear)	16*6-8	Turning radius	2070mm
Performance		Groubd clearance under mast	88mm
Travel speed,laden/unladen	7.5/8.5km/h	Ground clearance at center of wheelbase(laden)	110mm
Lifting speed,laden/unladen	200/220mm/s	Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)	3750mm
Lowering speed,laden/unladen	450mm/s	Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)	3950mm
Maximum negoniable gradient,laden/unladen	15/20%	Electrical configuration
Weight		Drive motor power-60 minutes	5(permanent magnet synchronization)kW
Service mass(with battery)	2130kg	Lift motor power-15 minutes	4.5(permanent magnet synchronization)kW
Battery voltage /nominal capacity	60V/150Ah	Drive motor controlling mode	MOSFET/PMSM
Battery weight	207kg	Lifting motor controlling mode	MOSFET/PMSM
