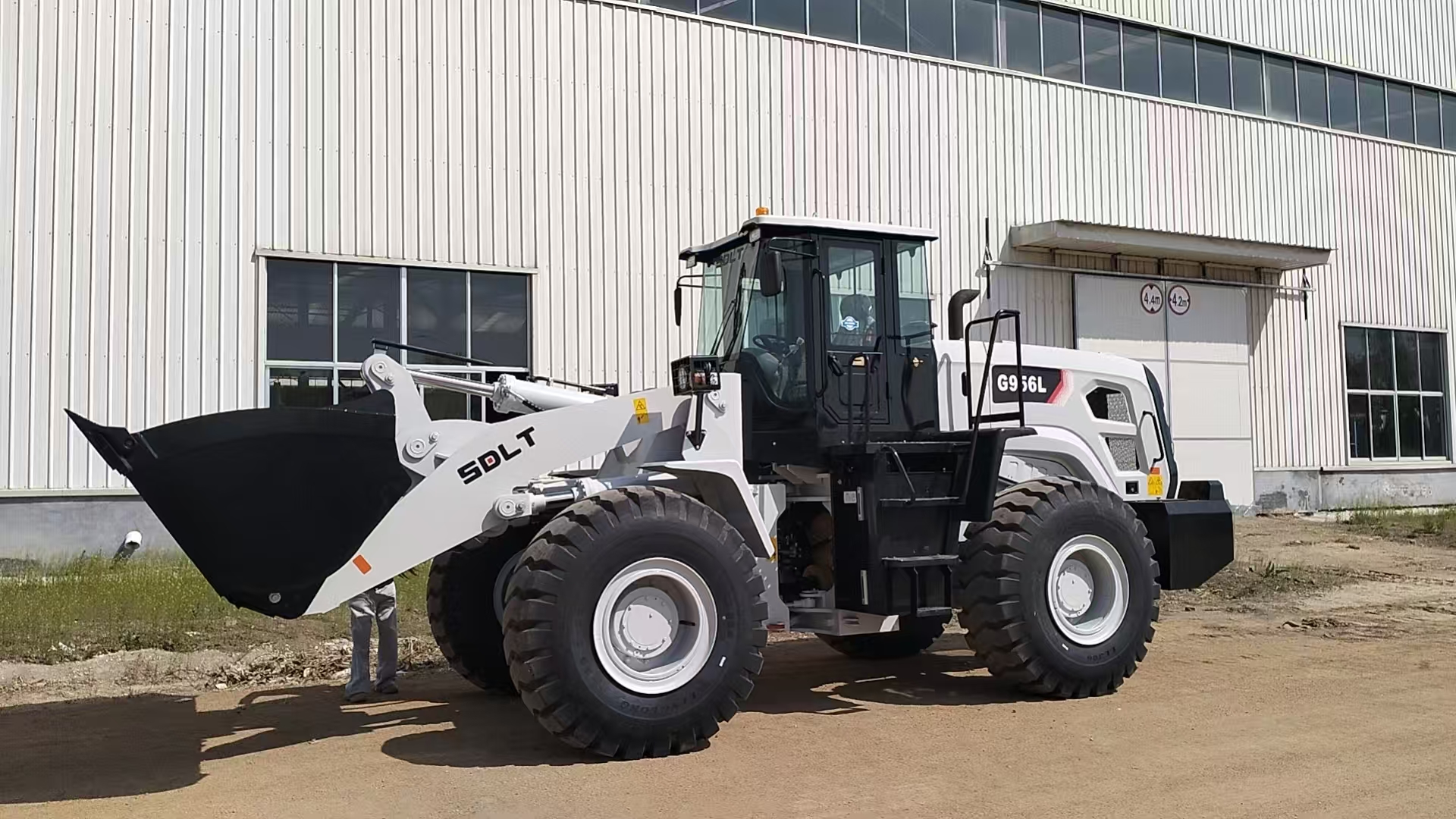

LT956G 5TON LOADER

HIGH EFFICIENCY

· Weichai Engine Tier 2/3, energy-saving, low-speed, realizes a comprehensive energy saving of more than 10%

RELIABLE & EFFICIENT HYDRAULICS

· Optimized design of working efficient hydraulic system

· Load sensing steering system provides easy and flexible steering operating experience

· Parker multiway valves, Permco working pumps and hydraulic components

HIGH RELIABILITY

· SDLT planetary transmission, F2/R1,

· Hydraulic power shift, easy operation, high reliability, convenient maintenance.

HEAVY DUTY

· Enhanced front drive axle and oscillating rear drive axle jointly developed by Volvo and SDLT, carrying ability can reach 36T

· Double-swing-arm connection, stronger bearing capacity, higher reliability

GREATER LIFTING CAPACITY

· Rated load is improved to 5.0 ton, correspondingly the bucket volume is enlarged to 3.0m3

· Trapezoidal structure of leading plate, small working resistance, shovel with a hard material, loading capacity increases by 10%

SERVICEABILITY

· New designed Engine hood provides larger opening angle, enable the technician do the service and repair easily

· Side-opening type steel-made engine hood with large side door, which is easy to maintain.

product manual
  • Selling point
  • Configuration
  • Customer case
  • Relevant
  • Back to previous
We Accept:
LT956G 5TON LOADER


Overall Dimension
1Length(with bucket on ground)7955mm
2Width(to outside of wheels)2800mm
3Bucket width2946mm
4Height(To the top of the cab)3450mm
5Wheel base3100mm
6Tread2200mm
7Min. ground clearance450mm
Main Technical Specification
1Rated load5000Kg
2Operating weight16300Kg
3Rated bucket capacity3.0(m3)
4Max. breakout force160kN
5Max. dump clearance3050mm
6Dump reach1107mm
7Dump angle at any position≥450
8Digging depth(with bucket bottom horizontal)165mm
9Min. turning radius

(1) Outside of bucket6575mm

(2) Outside of rear wheel5970mm
10Pivot angle frame380
11Oscillating angle of rear axle+130
12Lifting time of bucket≤6.2sec.
13Lowering time of bucket≤3.8sec.
14Dumping time≤1.8sec.
15Traveling speed, 3 forward and 3 reverse

(1) 1st gear(forward/reverse)6.9/9.1

(2) 2nd gear(forward/reverse)11.2/14.3

(3) 3rd gear (forward/reverse)35/37.1
Diesel engine
1ModelChinese Engine WD615G.220
2TypeDirect injection. Natural Aspirate. Water cooling
3Rated output162Kw
4Inter-bore of cylinder/stroke126/130mm
5Displacement of cylinder9.726L
6Model of starting motorKB-24V
7Power of start motor7.5KW
8Voltage of starting motor24V
9Rated speed2200r/min
10Max. Torque>843N.m
11Starting typeElectric
12Min. specific fuel consumption< 226g/Kw.h
13Engine specific oil consumption0.95-1.77g/Kw.h
14Net weight850Kg
Transmission System
Hydromedia Transmission
1ModelZ50E.2.1
2Type of torque converter3-elements.single stage
3Torque ratio4
4Cooling typePressure oil circulating
5Type of transmission casepower shift, spur gear constant-mesh
3Gear shift position2 Forward and 1 reverse gears
Axle and Tire
1Type of main reducerspiral bevel gear, single stage
2Gear ratio of main reducer4.4
3Type of final reducerSingle stage planetary
4Gear of ratio of final reducer4.928
5Gear ratio20.35
6Max. drawing force150kN
7Type of main reducer23.5-25-16PR
Working Device Hydraulic System
1Model of oil pumpJHP2080
2System pressure18MPa
3Model of Mutichannel conversion valveD32II-YL20
4Model of pilot valveDJS2-UX/UU
5(D*L)Dimension of lifting cylinderФ160*90*715mm
6(D*L)Dimension of tilting cylinderФ180*90*530mm
Steering System
1TypeMiddle articulated frame. Full-hydraulic Steering
2Model of steering pumpJHP2080
3Model of redirectorTLF1-E1000B+FKB6020
4Model of priority valveYXL-F250F-16N7-A
5System pressure16MPa
6Dimension of steering cylinderФ90*400 mm
Brake System
1Type of traveling brakeCaliper disc brake Air over oil activate 4 wheel brake
2Air pressure6-7.5kgf/cm2
3Type of parking brakeHand brake Flexible shaft control clamp brake
Oil Capacity
1Fuel(diesel)250L
2Engine lubricating oil20L
3Oil for converter and gear box45L
4Oil for hydraulic system180L
5Oil for driving axles(F/R)36L
6Oil for final reducer12L
7Oil for brake system3L




  • 微信图片_20240821163023.png

    Overall Dimension
    1Length(with bucket on ground)7955mm
    2Width(to outside of wheels)2800mm
    3Bucket width2946mm
    4Height(To the top of the cab)3450mm
    5Wheel base3100mm
    6Tread2200mm
    7Min. ground clearance450mm
    Main Technical Specification
    1Rated load5000Kg
    2Operating weight16300Kg
    3Rated bucket capacity3.0(m3)
    4Max. breakout force160kN
    5Max. dump clearance3050mm
    6Dump reach1107mm
    7Dump angle at any position≥450
    8Digging depth(with bucket bottom horizontal)165mm
    9Min. turning radius

    		(1) Outside of bucket6575mm

    		(2) Outside of rear wheel5970mm
    10Pivot angle frame380
    11Oscillating angle of rear axle+130
    12Lifting time of bucket≤6.2sec.
    13Lowering time of bucket≤3.8sec.
    14Dumping time≤1.8sec.
    15Traveling speed, 3 forward and 3 reverse

    		(1) 1st gear(forward/reverse)6.9/9.1

    		(2) 2nd gear(forward/reverse)11.2/14.3

    		(3) 3rd gear (forward/reverse)35/37.1
    Diesel engine
    1ModelChinese Engine WD615G.220
    2TypeDirect injection. Natural Aspirate. Water cooling
    3Rated output162Kw
    4Inter-bore of cylinder/stroke126/130mm
    5Displacement of cylinder9.726L
    6Model of starting motorKB-24V
    7Power of start motor7.5KW
    8Voltage of starting motor24V
    9Rated speed2200r/min
    10Max. Torque>843N.m
    11Starting typeElectric
    12Min. specific fuel consumption< 226g/Kw.h
    13Engine specific oil consumption0.95-1.77g/Kw.h
    14Net weight850Kg
    Transmission System
    Hydromedia Transmission
    1ModelZ50E.2.1
    2Type of torque converter3-elements.single stage
    3Torque ratio4
    4Cooling typePressure oil circulating
    5Type of transmission casepower shift, spur gear constant-mesh
    3Gear shift position2 Forward and 1 reverse gears
    Axle and Tire
    1Type of main reducerspiral bevel gear, single stage
    2Gear ratio of main reducer4.4
    3Type of final reducerSingle stage planetary
    4Gear of ratio of final reducer4.928
    5Gear ratio20.35
    6Max. drawing force150kN
    7Type of main reducer23.5-25-16PR
    Working Device Hydraulic System
    1Model of oil pumpJHP2080
    2System pressure18MPa
    3Model of Mutichannel conversion valveD32II-YL20
    4Model of pilot valveDJS2-UX/UU
    5(D*L)Dimension of lifting cylinderФ160*90*715mm
    6(D*L)Dimension of tilting cylinderФ180*90*530mm
    Steering System
    1TypeMiddle articulated frame. Full-hydraulic Steering
    2Model of steering pumpJHP2080
    3Model of redirectorTLF1-E1000B+FKB6020
    4Model of priority valveYXL-F250F-16N7-A
    5System pressure16MPa
    6Dimension of steering cylinderФ90*400 mm
    Brake System
    1Type of traveling brakeCaliper disc brake Air over oil activate 4 wheel brake
    2Air pressure6-7.5kgf/cm2
    3Type of parking brakeHand brake Flexible shaft control clamp brake
    Oil Capacity
    1Fuel(diesel)250L
    2Engine lubricating oil20L
    3Oil for converter and gear box45L
    4Oil for hydraulic system180L
    5Oil for driving axles(F/R)36L
    6Oil for final reducer12L
    7Oil for brake system3L
